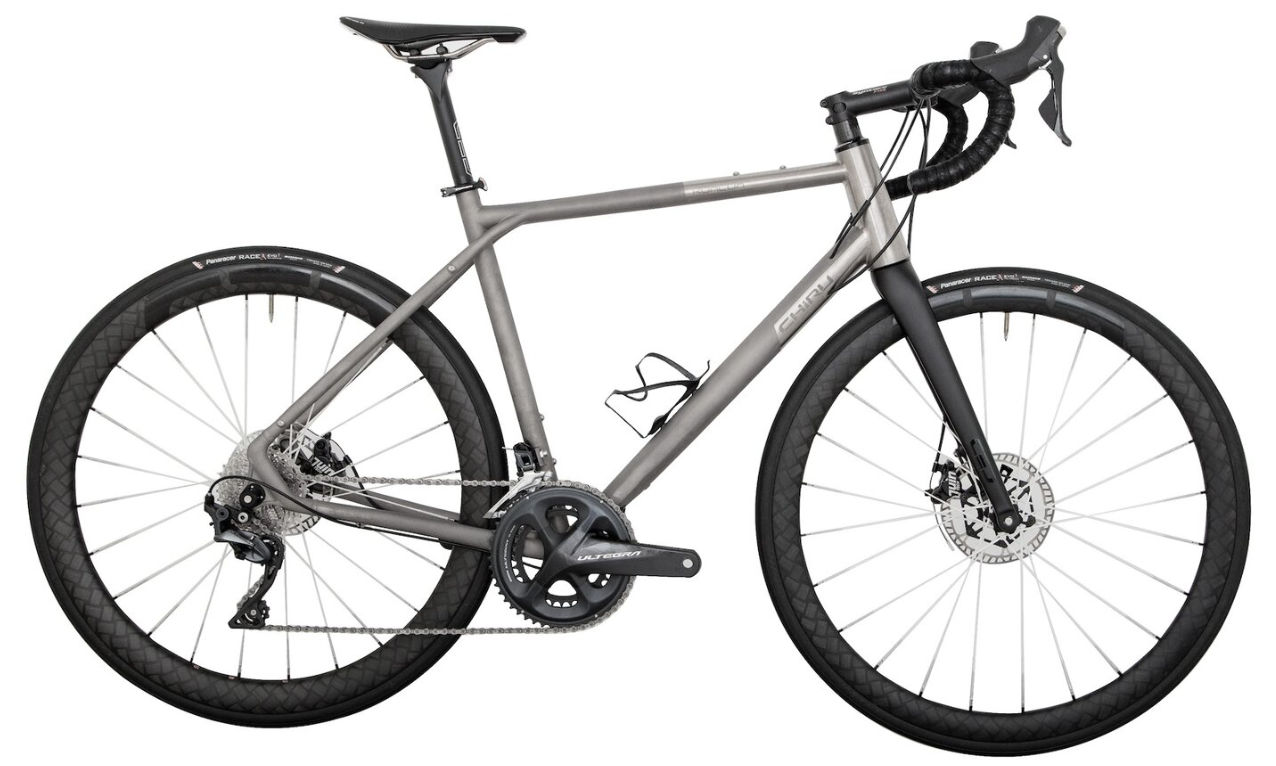

2020 Chiru Kunlun geometry
Full frame geometry for the 2020 Chiru Kunlun, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 523 | 375 | 75 | 70.8 | 120 | 515 | 455 | 759 | 72 | 585 | 423 | 997 | 45 | 72 |
| S | 547 | 378 | 74.2 | 71 | 145 | 535 | 500 | 796 | 71 | 595 | 426 | 1011 | 45 | 71 |
| M | 566 | 381 | 73.4 | 71.5 | 165 | 550 | 525 | 821 | 70 | 599 | 428 | 1017 | 45 | 68 |
| L | 586 | 386 | 73 | 72 | 185 | 565 | 565 | 854 | 69 | 606 | 430 | 1026 | 45 | 65 |
| XL | 606 | 392 | 72.8 | 72.5 | 205 | 580 | 580 | 873 | 68 | 612 | 433 | 1036 | 45 | 62 |
All measurements in millimetres unless marked (°) for angles.
