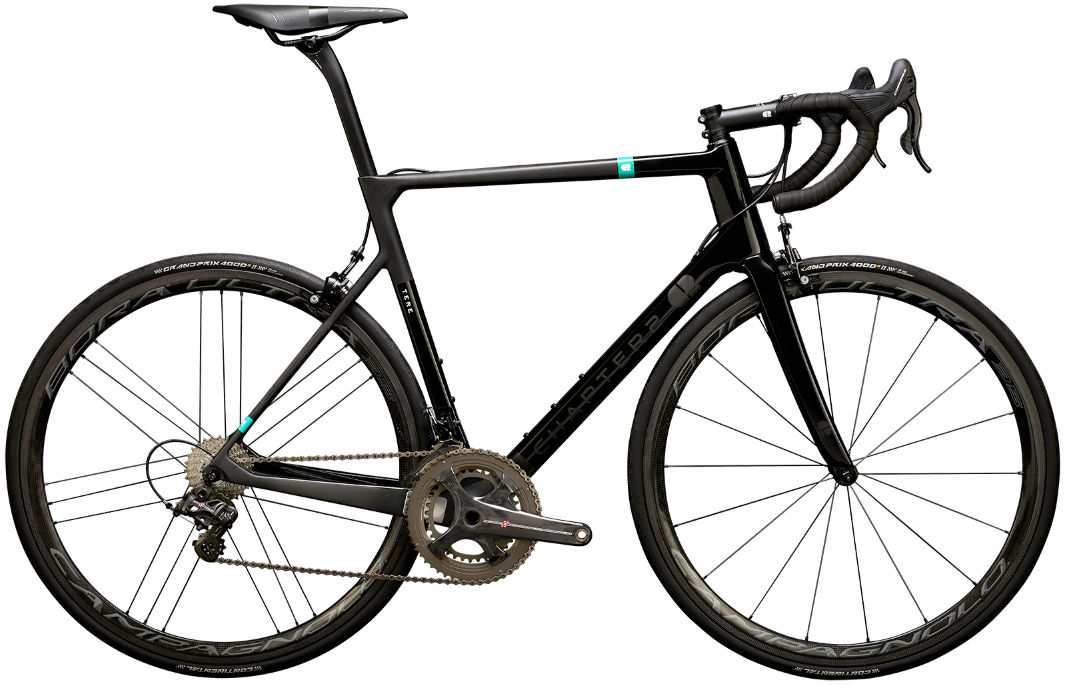

2017 Chapter2 TERE geometry
Full frame geometry for the 2017 Chapter2 TERE, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 505 | 360 | 73 | 70.5 | 113 | 516 | 495 | 771 | 68 | 575 | 405 | 970 | 53 | 63 |
| S | 530 | 369 | 73 | 72.2 | 133 | 531 | 515 | 794 | 68 | 577 | 405 | 962 | 53 | 52 |
| M | 555 | 378 | 73 | 73.1 | 153 | 548 | 535 | 817 | 68 | 575 | 405 | 970 | 43 | 57 |
| L | 580 | 387 | 73 | 73.5 | 178 | 564 | 555 | 840 | 68 | 587 | 405 | 982 | 43 | 55 |
| XL | 605 | 396 | 73 | 73.5 | 204 | 581 | 575 | 863 | 68 | 604 | 405 | 999 | 43 | 55 |
All measurements in millimetres unless marked (°) for angles.
