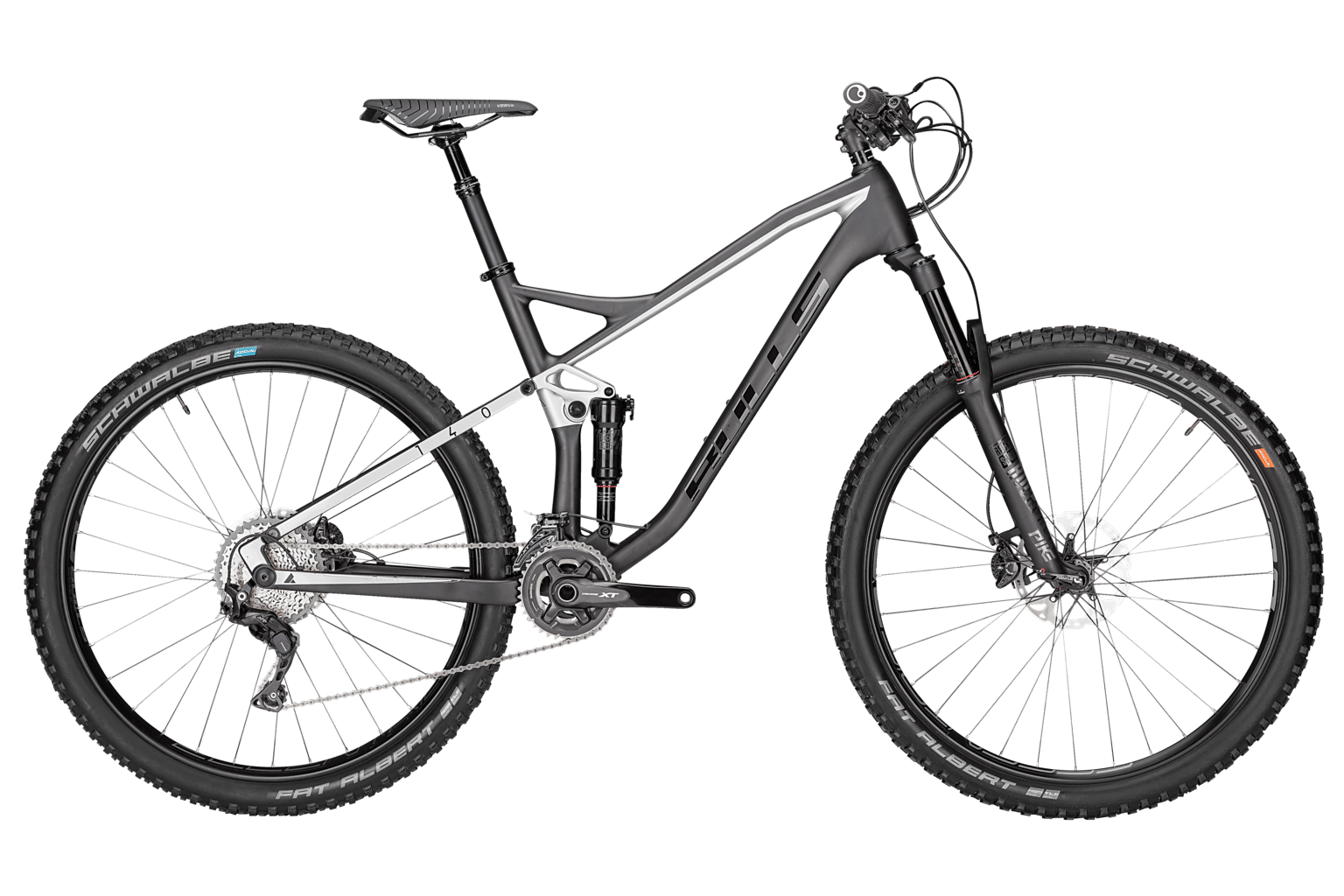

2017 Bulls Wild Ronin 27.5 geometry
Full frame geometry for the 2017 Bulls Wild Ronin 27.5, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| M | 614 | 430 | 74 | 67 | 60 | 606 | 440 | 23 | 445 | 1176 |
| S | 614 | 415 | 74 | 67 | 50 | 591 | 390 | 23 | 445 | 1161 |
| L | 628 | 445 | 74 | 67 | 70 | 625 | 490 | 23 | 445 | 1197 |
| XL | 651 | 460 | 74 | 67 | 80 | 646 | 540 | 23 | 445 | 1222 |
All measurements in millimetres unless marked (°) for angles.
