2017 Bulls · MD

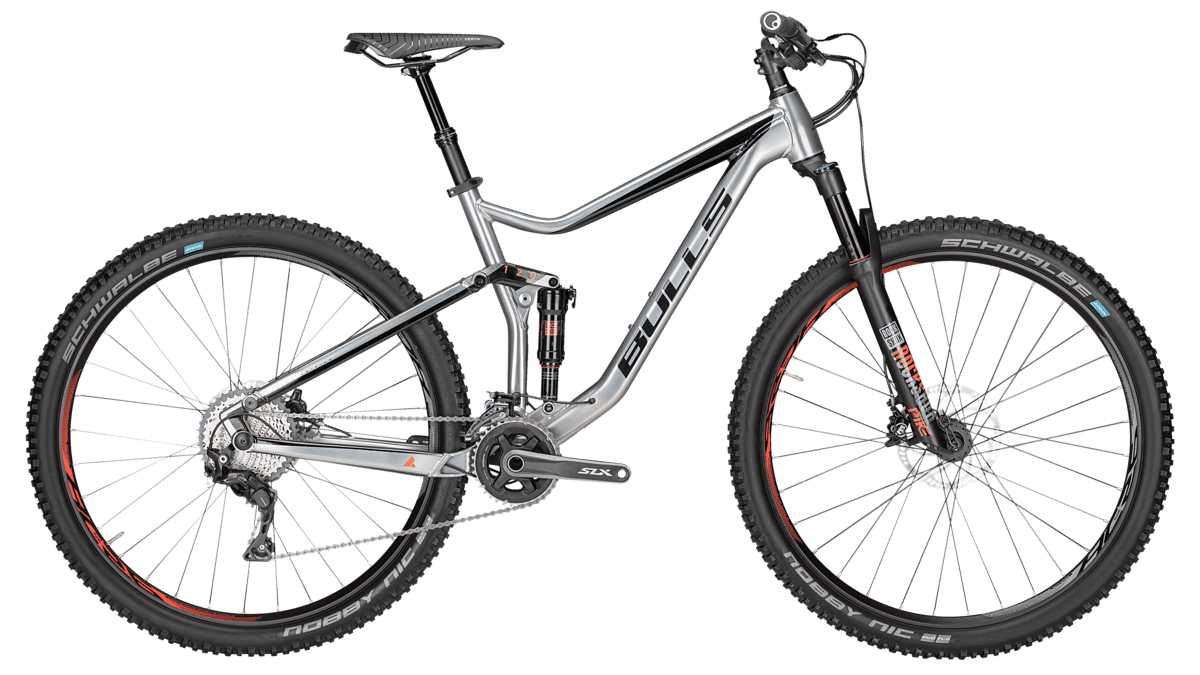

2017 Bulls Wild Flow geometry
Full frame geometry for the 2017 Bulls Wild Flow, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| M | 607 | 435 | 74 | 70 | 110 | 609 | 460 | 40 | 445 | 1135 |
| L | 625 | 450 | 74 | 70 | 130 | 629 | 510 | 40 | 450 | 1162 |
| XL | 649 | 465 | 74 | 70 | 155 | 652 | 560 | 40 | 460 | 1197 |
All measurements in millimetres unless marked (°) for angles.
