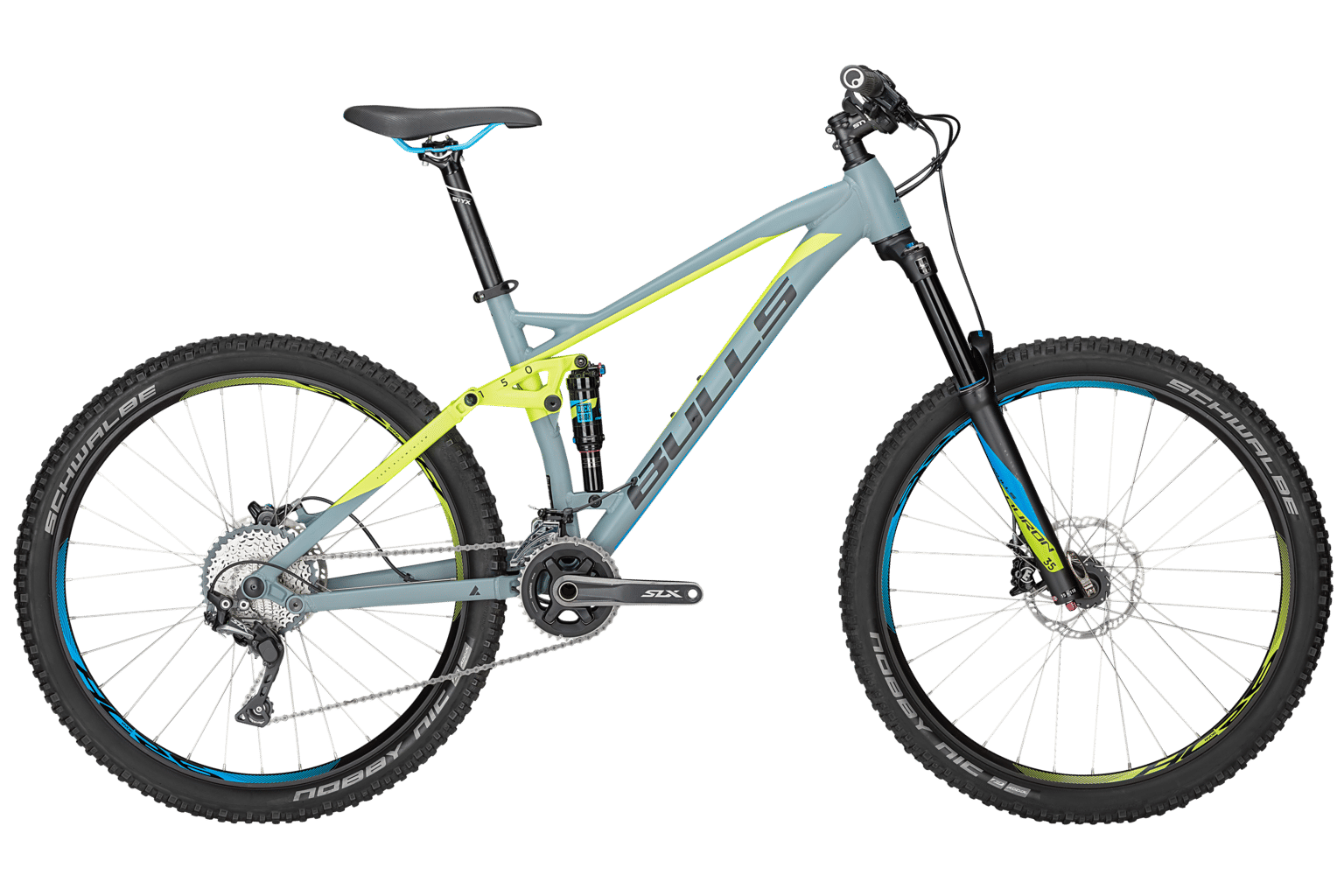

2017 Bulls Wild Cup MK II geometry
Full frame geometry for the 2017 Bulls Wild Cup MK II, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| M | 599 | 423 | 74 | 67 | 110 | 595 | 440 | 15 | 440 | 1156 |
| S | 599 | 398 | 74 | 67 | 110 | 570 | 390 | 15 | 440 | 1131 |
| L | 612 | 444 | 74 | 67 | 125 | 620 | 490 | 15 | 440 | 1183 |
| XL | 645 | 461 | 74 | 67 | 160 | 645 | 540 | 15 | 440 | 1213 |
All measurements in millimetres unless marked (°) for angles.
