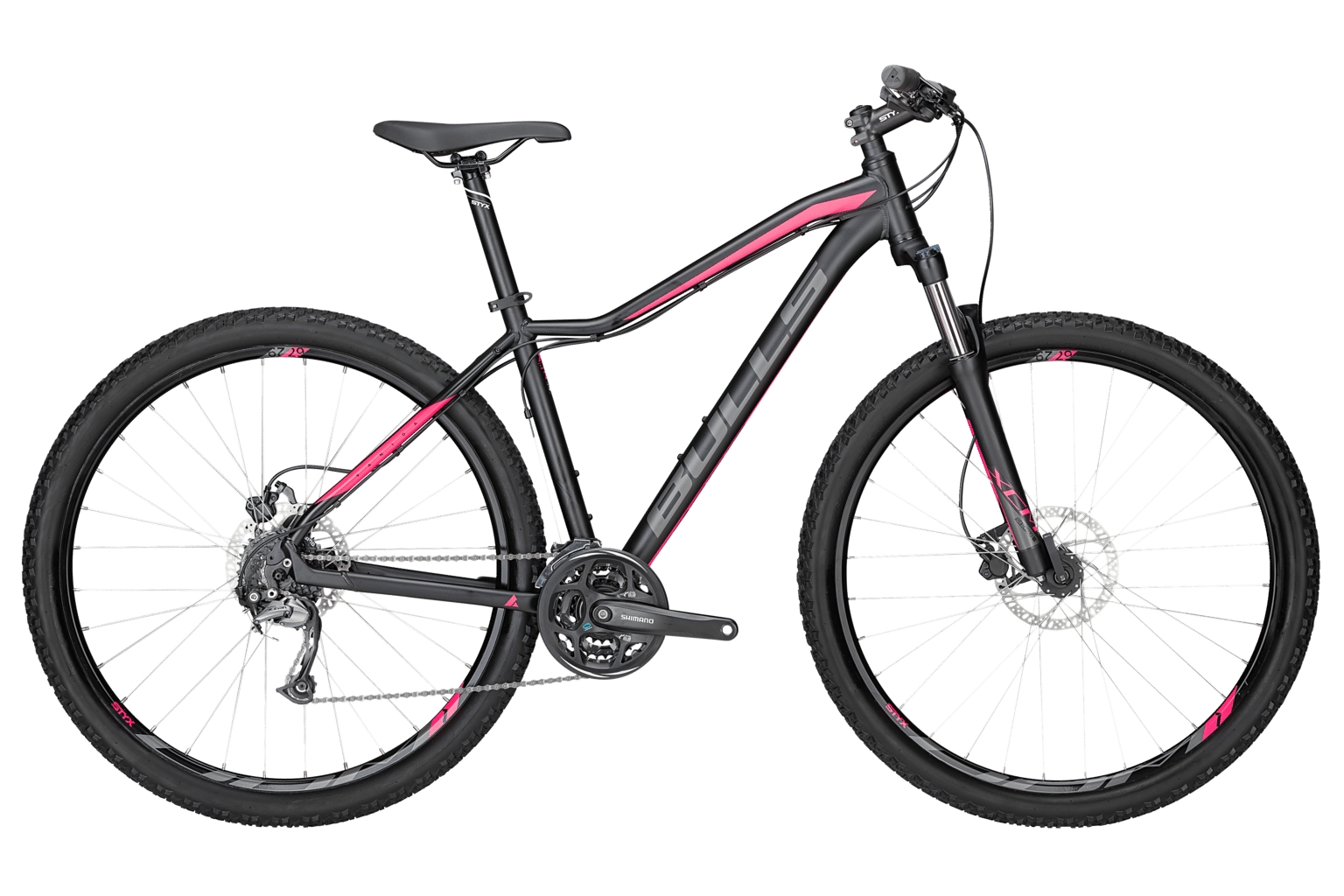

2017 Bulls Vanida 29 geometry
Full frame geometry for the 2017 Bulls Vanida 29, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| S | 623 | 386 | 74 | 70 | 105 | 565 | 410 | 60 | 455 | 1090 |
| XS | 623 | 382 | 75 | 70 | 105 | 555 | 370 | 60 | 455 | 1086 |
| L | 629 | 403 | 73 | 71 | 115 | 595 | 510 | 55 | 460 | 1110 |
| M | 634 | 392 | 74 | 71 | 115 | 580 | 460 | 60 | 455 | 1094 |
All measurements in millimetres unless marked (°) for angles.
