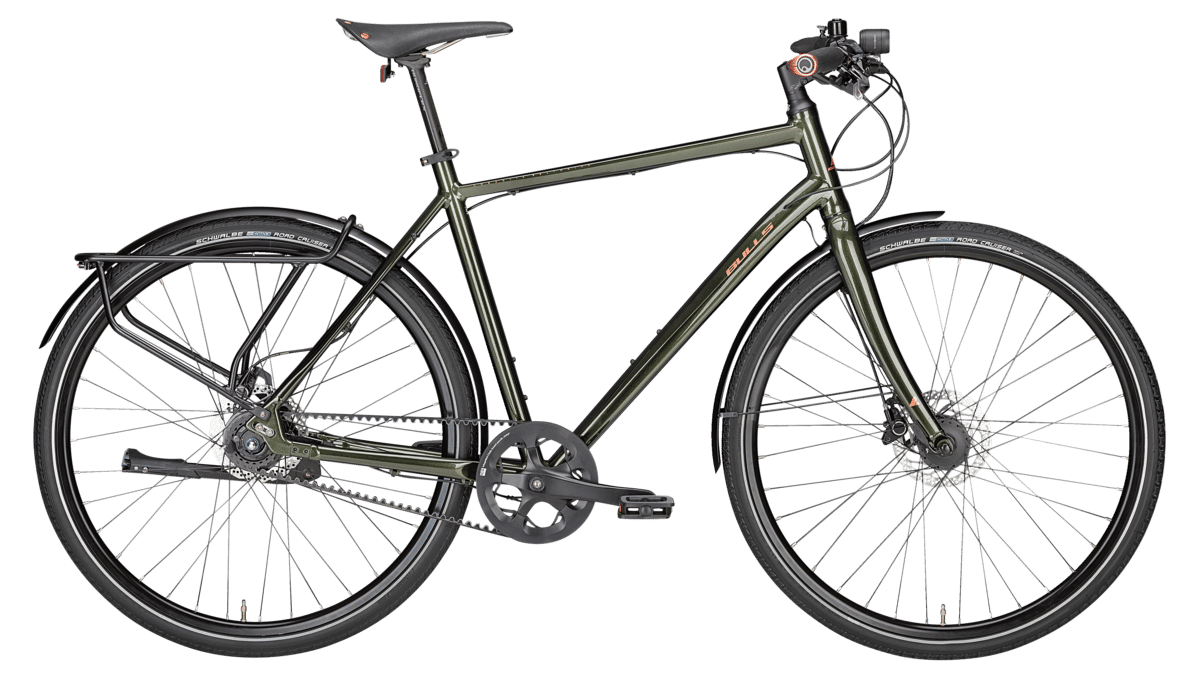

2017 Bulls Urban S Beltdrive geometry
Full frame geometry for the 2017 Bulls Urban S Beltdrive, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| S | 568 | 411 | 73 | 71 | 150 | 585 | 480 | 60 | 454 | 1084 |
| M | 587 | 420 | 73 | 71 | 170 | 600 | 540 | 60 | 454 | 1100 |
| L | 611 | 428 | 73 | 71 | 195 | 615 | 580 | 60 | 454 | 1116 |
| XL | 634 | 428 | 73 | 71 | 220 | 622 | 610 | 60 | 454 | 1123 |
All measurements in millimetres unless marked (°) for angles.
