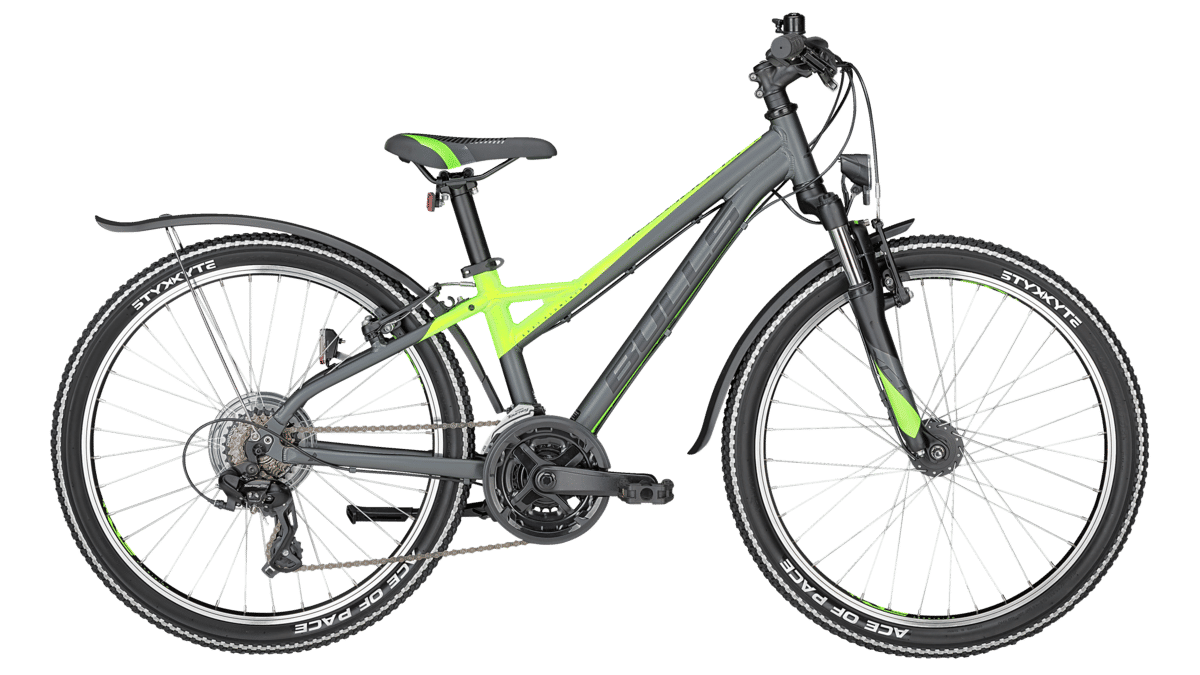

2017 Bulls Sharptail Street 26 JR geometry
Full frame geometry for the 2017 Bulls Sharptail Street 26 JR, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| M | 561 | 339 | 73 | 70 | 100 | 510 | 320 | 50 | 415 | 984 |
All measurements in millimetres unless marked (°) for angles.
