2017 Bulls · U

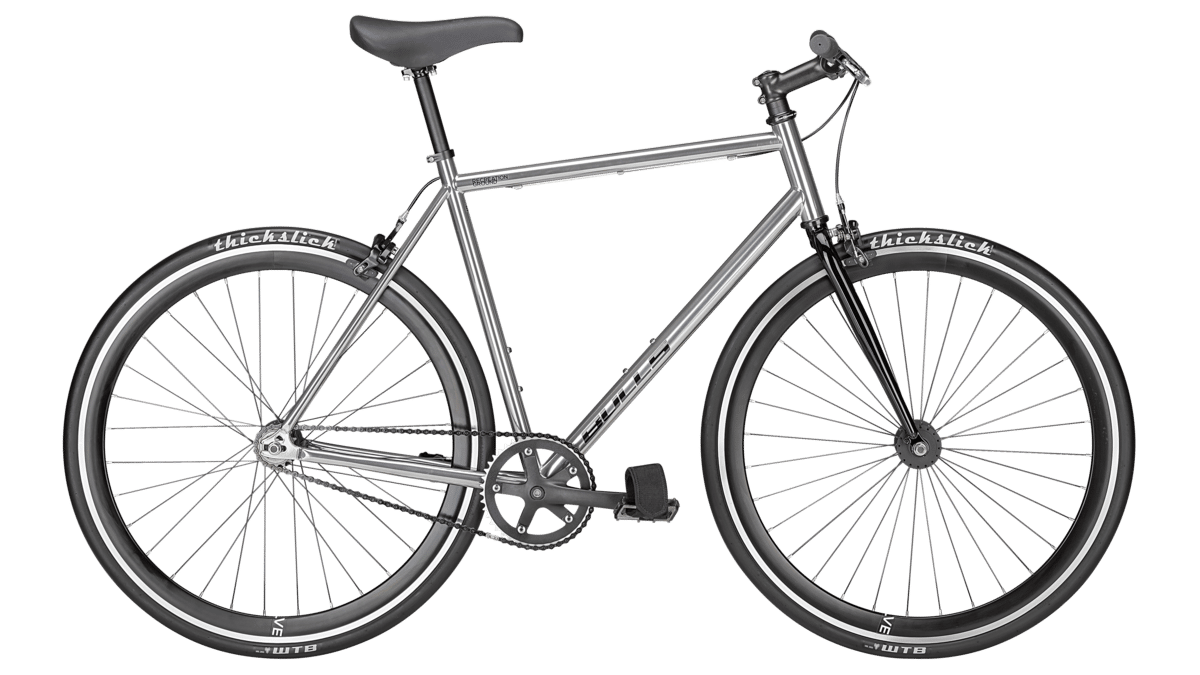

2017 Bulls Recreation Ground geometry
Full frame geometry for the 2017 Bulls Recreation Ground, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| S | 529 | 378 | 75 | 71 | 110 | 520 | 500 | 70 | 415 | 993 |
| M | 580 | 384 | 74 | 72 | 160 | 550 | 550 | 70 | 415 | 1006 |
| L | 622 | 390 | 73 | 73 | 200 | 580 | 600 | 70 | 415 | 1015 |
All measurements in millimetres unless marked (°) for angles.
