2017 Bulls · G

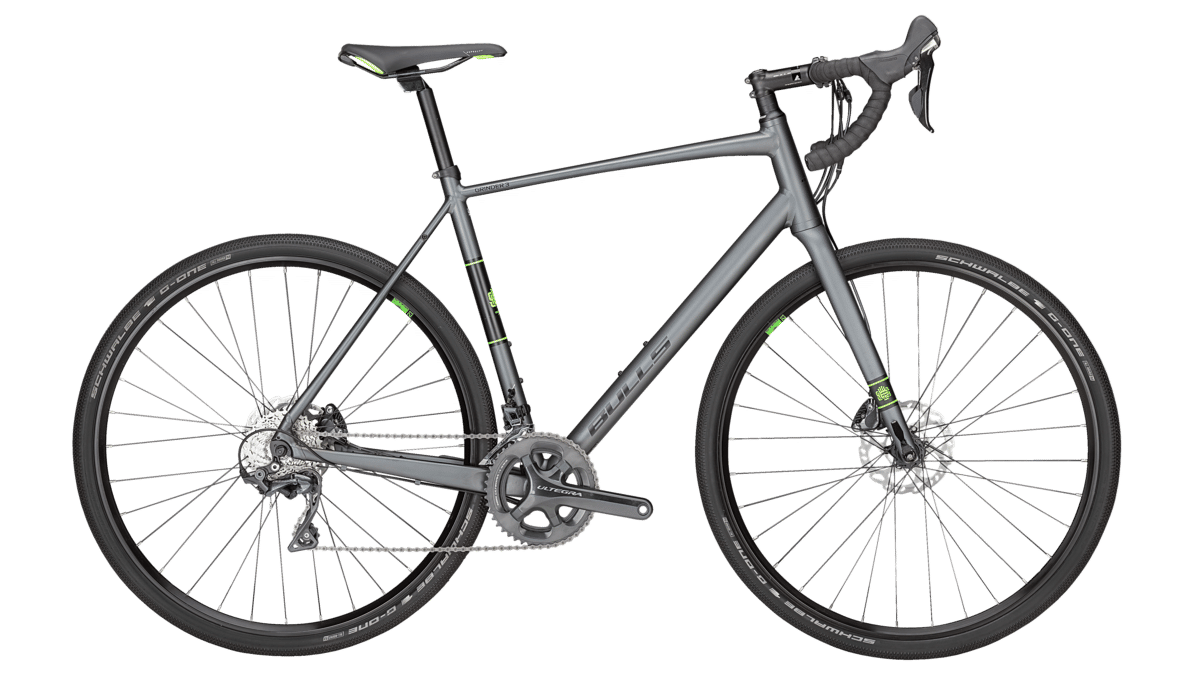

2017 Bulls Grinder geometry
Full frame geometry for the 2017 Bulls Grinder, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| S | 562 | 370 | 74 | 70 | 135 | 536 | 490 | 75 | 430 | 1020 |
| M | 589 | 375 | 73 | 71 | 160 | 552 | 520 | 75 | 430 | 1025 |
| L | 614 | 381 | 73 | 72 | 189 | 569 | 550 | 70 | 430 | 1037 |
| XL | 638 | 389 | 73 | 72 | 213 | 587 | 580 | 70 | 430 | 1047 |
| XXL | 664 | 395 | 73 | 72 | 240 | 604 | 610 | 70 | 430 | 1061 |
All measurements in millimetres unless marked (°) for angles.
