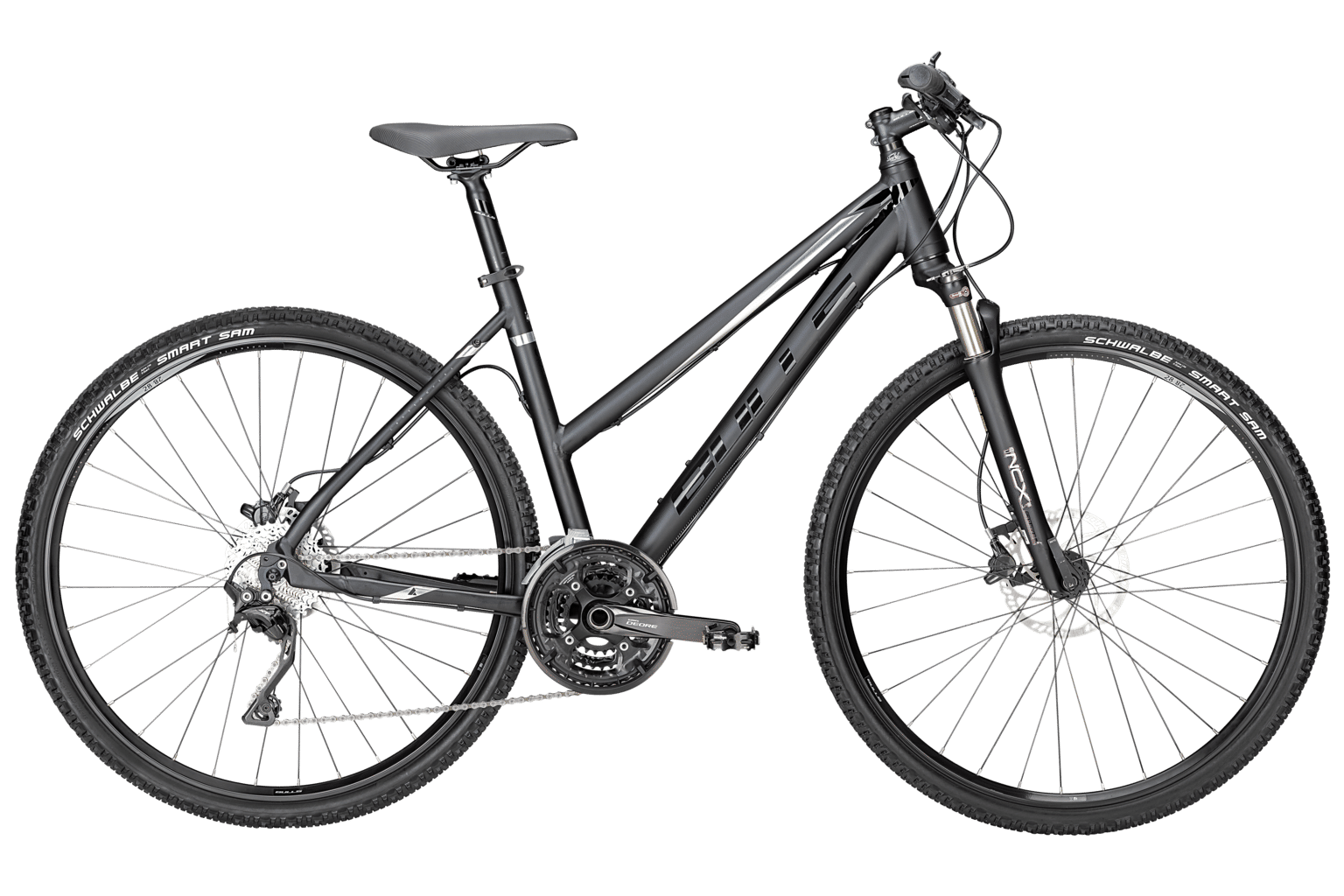

2017 Bulls Cross Mover Lady geometry
Full frame geometry for the 2017 Bulls Cross Mover Lady, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| M | 609 | 400 | 74 | 71 | 130 | 580 | 480 | 55 | 440 | 1069 |
| L | 614 | 408 | 74 | 71 | 135 | 590 | 540 | 55 | 440 | 1079 |
| S | 614 | 395 | 75 | 71 | 130 | 565 | 440 | 60 | 440 | 1064 |
All measurements in millimetres unless marked (°) for angles.
