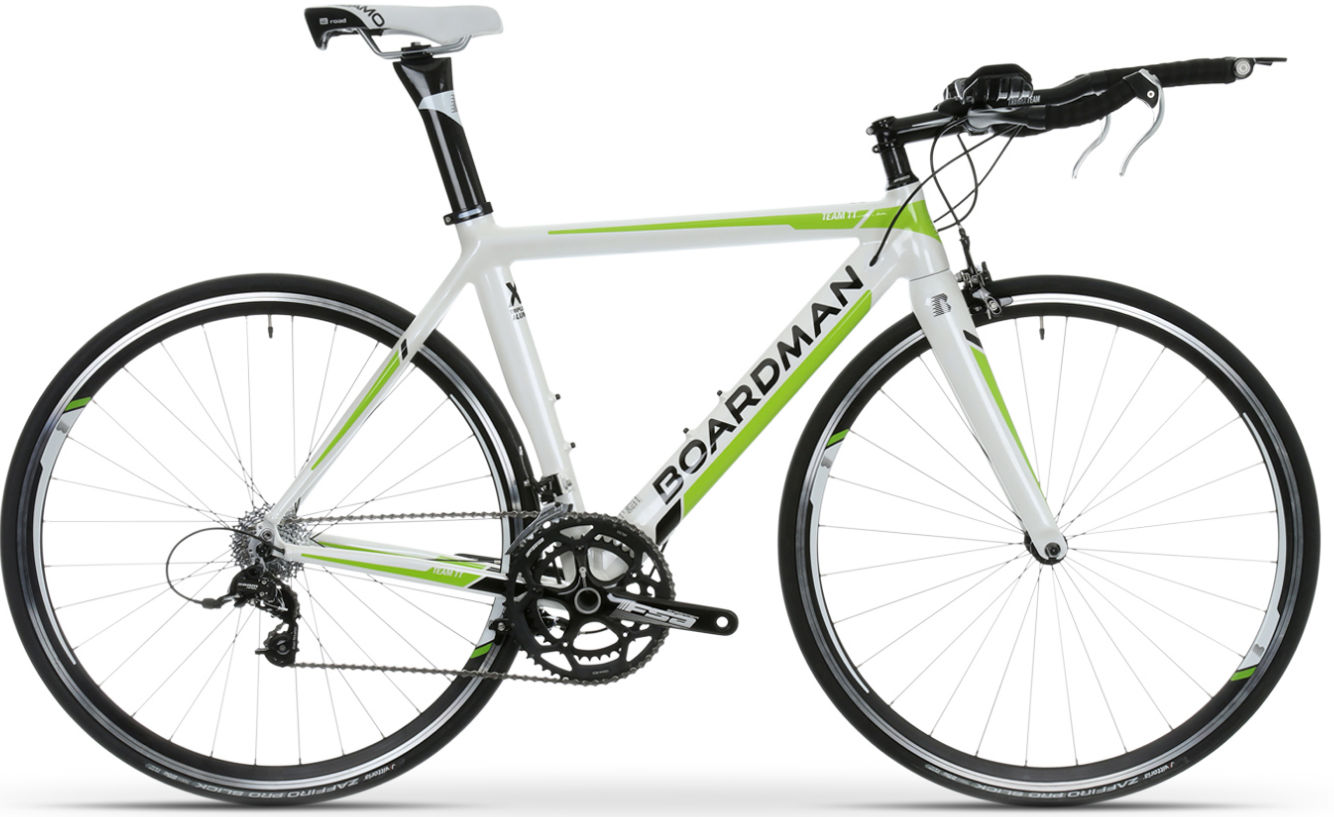

2016 Boardman Performance Team TT geometry
Full frame geometry for the 2016 Boardman Performance Team TT, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 497 | 376 | 76 | 72.5 | 95 | 500 | 520 | 775 | 68 | 400 | 951 | 43 |
| S | 511 | 392 | 76 | 72.5 | 110 | 520 | 540 | 792 | 68 | 400 | 972 | 43 |
| M | 532 | 407 | 76 | 73 | 130 | 540 | 560 | 813 | 68 | 400 | 988 | 43 |
| L | 551 | 422 | 76 | 73 | 150 | 560 | 580 | 833 | 68 | 400 | 1009 | 43 |
All measurements in millimetres unless marked (°) for angles.
