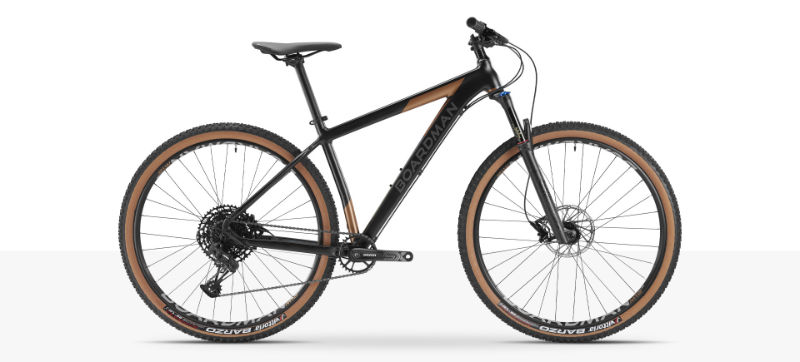

2025 Boardman Performance MHT geometry
Full frame geometry for the 2025 Boardman Performance MHT, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| MD | 625 | 425 | 73.5 | 68 | 100 | 610 | 460 | 63 | 435 | 51 |
| SM | 625 | 407 | 74 | 68 | 100 | 586 | 410 | 63 | 435 | 51 |
| LG | 639 | 441 | 73.5 | 68 | 115 | 630 | 483 | 63 | 435 | 51 |
All measurements in millimetres unless marked (°) for angles.
