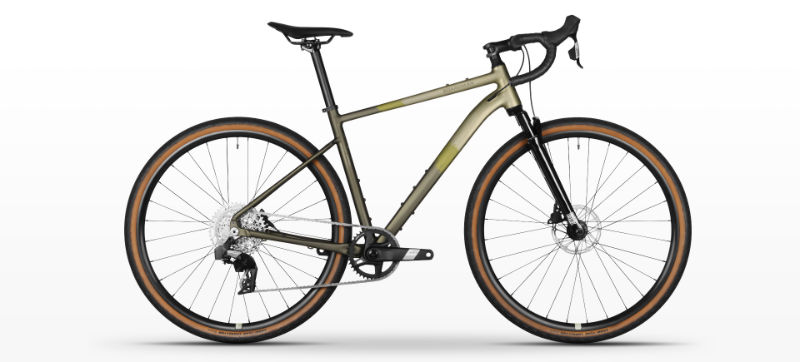

2025 Boardman Performance TRVL geometry
Full frame geometry for the 2025 Boardman Performance TRVL, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| SM | 580 | 380 | 74 | 70.5 | 125 | 545 | 460 | 75 | 430 | 51 |
| MD | 590 | 395 | 74 | 70.5 | 135 | 565 | 480 | 75 | 430 | 51 |
| LG | 603 | 406 | 73.5 | 70.5 | 150 | 585 | 500 | 75 | 430 | 51 |
All measurements in millimetres unless marked (°) for angles.
