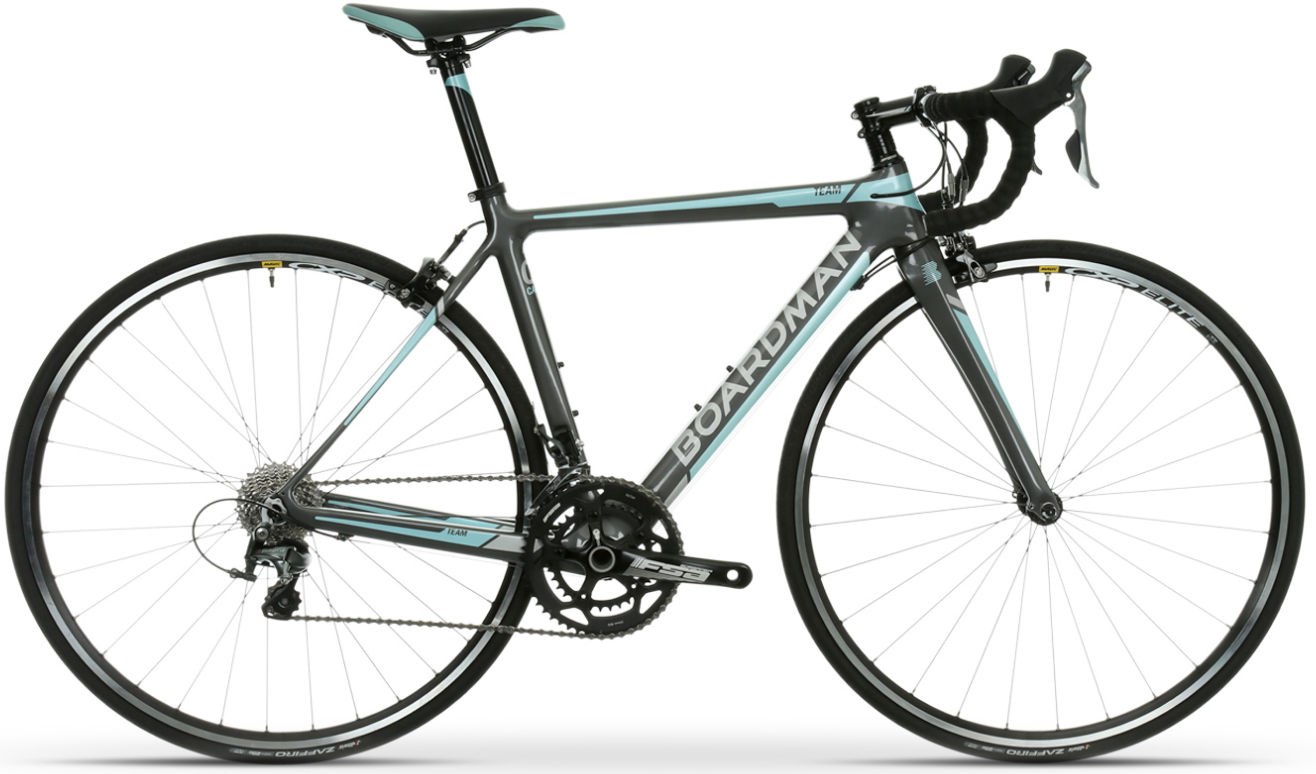

2016 Boardman Performance Team Carbon Womens geometry
Full frame geometry for the 2016 Boardman Performance Team Carbon Womens, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 491 | 360 | 73 | 70.5 | 100 | 510 | 485 | 762 | 65 | 410 | 962 | 48 |
| M | 515 | 367 | 73 | 72 | 120 | 525 | 500 | 782 | 65 | 410 | 965 | 48 |
| L | 539 | 375 | 73 | 72.5 | 140 | 540 | 515 | 799 | 68 | 410 | 975 | 48 |
| XL | 560 | 389 | 73 | 73 | 160 | 555 | 530 | 817 | 68 | 410 | 991 | 45 |
All measurements in millimetres unless marked (°) for angles.
