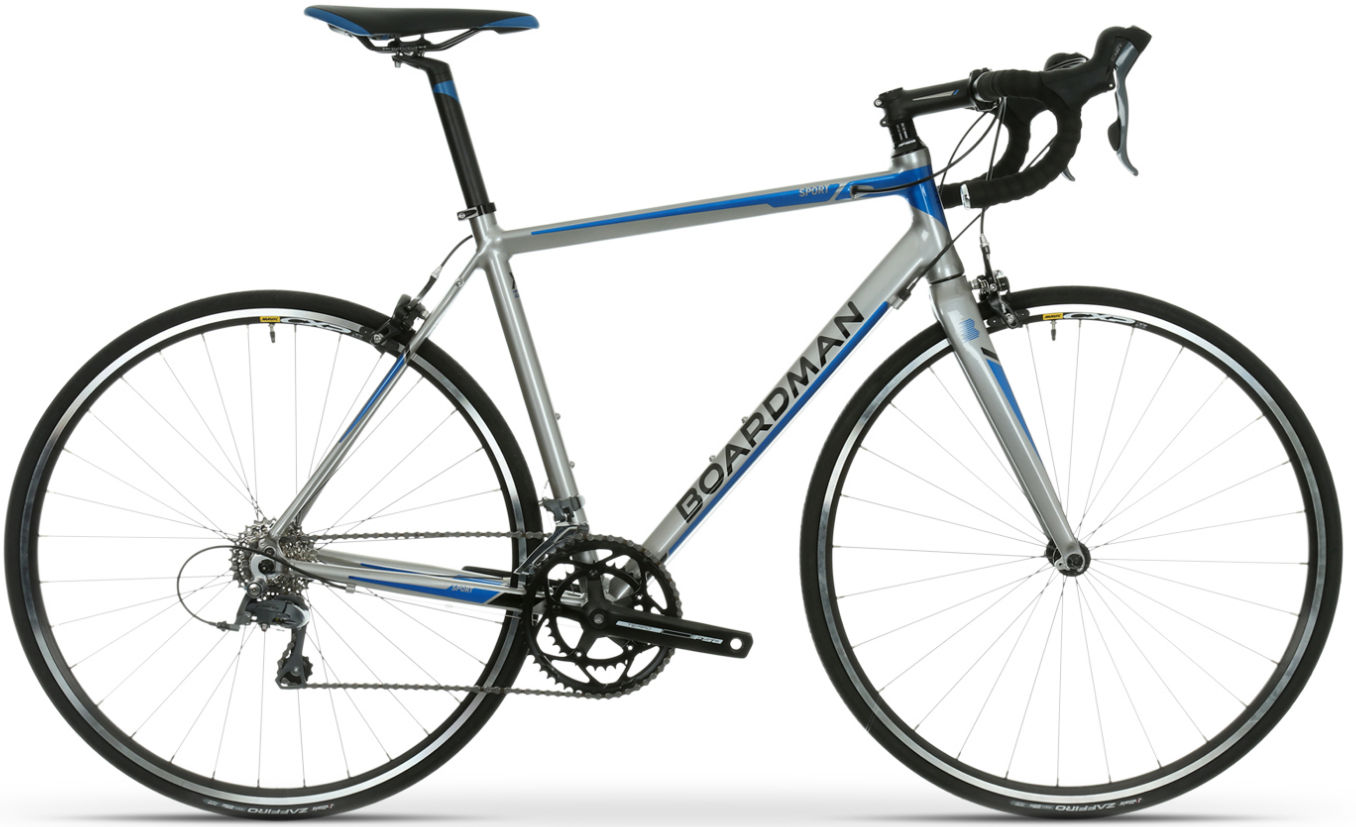

2016 Boardman Performance Road Sport geometry
Full frame geometry for the 2016 Boardman Performance Road Sport, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 559 | 385 | 74 | 72.5 | 145 | 545 | 515 | 808 | 68 | 415 | 999 | 48 |
| M | 576 | 390 | 74 | 73 | 160 | 555 | 530 | 824 | 68 | 415 | 1002 | 45 |
| L | 595 | 388 | 73 | 73 | 180 | 570 | 555 | 848 | 68 | 415 | 1006 | 45 |
| XL | 610 | 399 | 73 | 73 | 195 | 585 | 575 | 866 | 68 | 415 | 1021 | 45 |
All measurements in millimetres unless marked (°) for angles.
