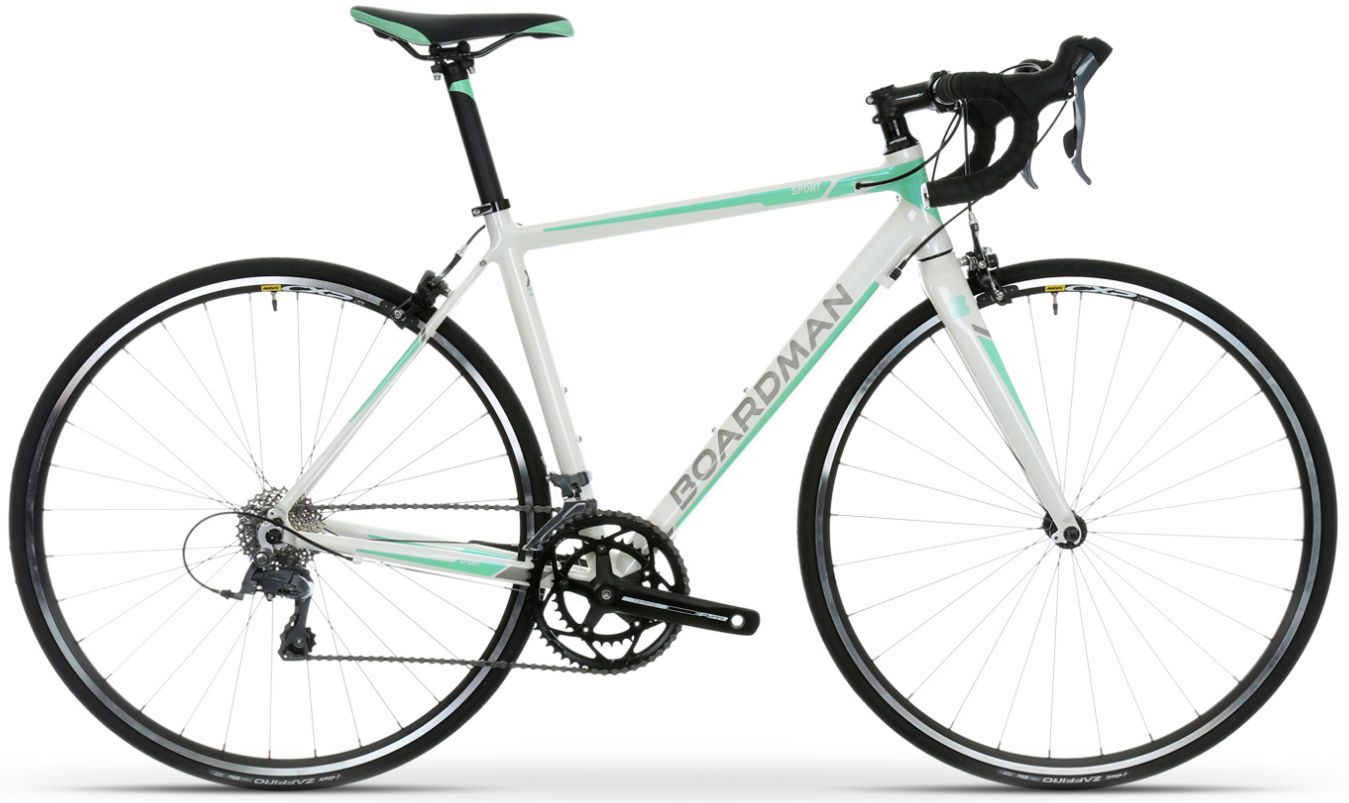

2016 Boardman Performance Road Sport Womens geometry
Full frame geometry for the 2016 Boardman Performance Road Sport Womens, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 525 | 364 | 74 | 71.5 | 110 | 515 | 460 | 759 | 71 | 415 | 976 | 48 |
| M | 561 | 367 | 73.5 | 72 | 135 | 530 | 500 | 798 | 71 | 415 | 982 | 48 |
| L | 562 | 384 | 73.5 | 72.5 | 150 | 550 | 525 | 815 | 68 | 415 | 1004 | 48 |
| XL | 595 | 388 | 73 | 73 | 180 | 570 | 555 | 848 | 68 | 415 | 1006 | 45 |
All measurements in millimetres unless marked (°) for angles.
