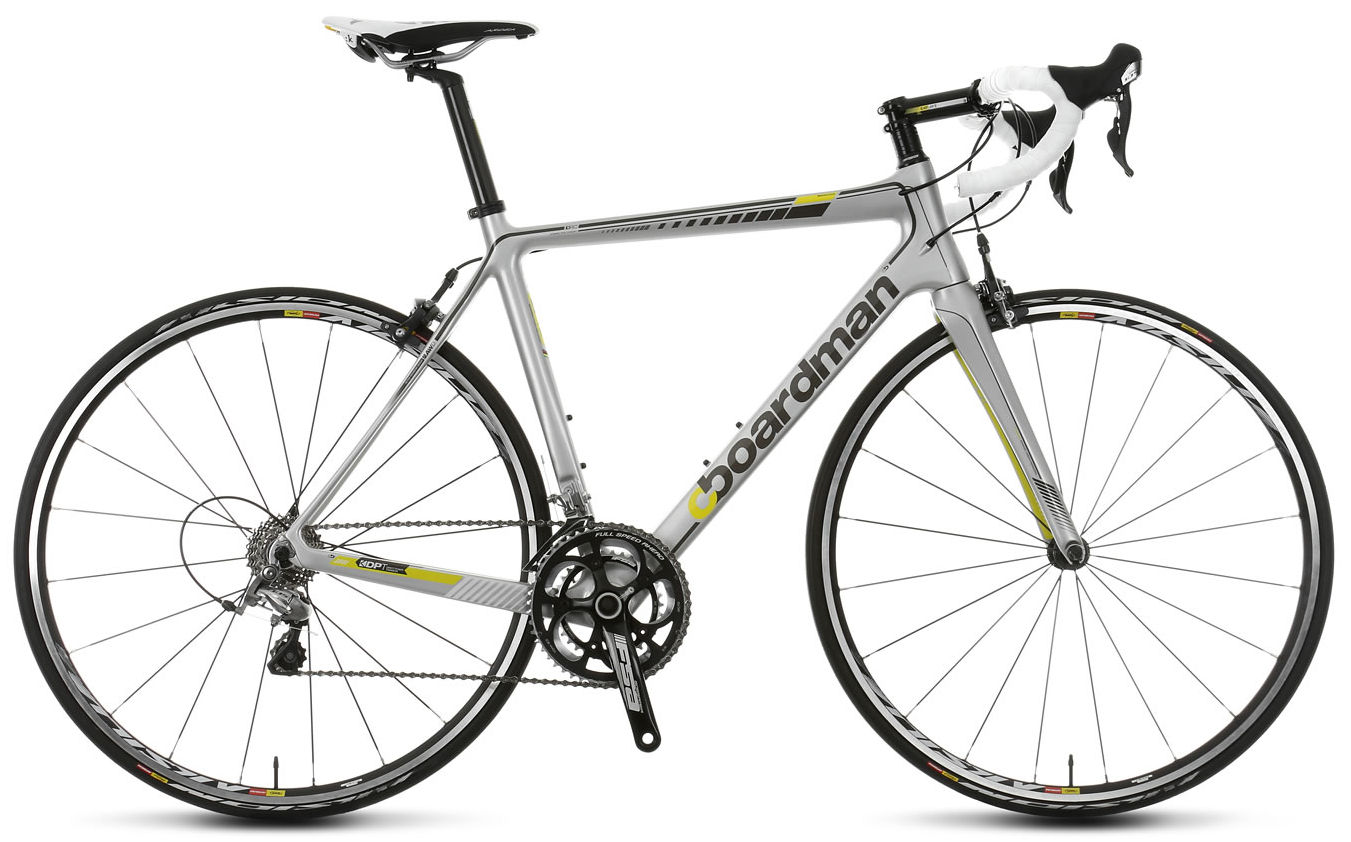

2014 Boardman Performance Pro Carbon geometry
Full frame geometry for the 2014 Boardman Performance Pro Carbon, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 520 | 366 | 73 | 72 | 120 | 525 | 500 | 780 | 68 | 562 | 410 | 962 | 45 |
| S | 540 | 375 | 73 | 72.5 | 140 | 540 | 515 | 797 | 68 | 573 | 410 | 973 | 45 |
| M | 561 | 383 | 73 | 73 | 160 | 555 | 530 | 816 | 68 | 583 | 410 | 983 | 45 |
| L | 580 | 393 | 73 | 73 | 180 | 570 | 555 | 838 | 68 | 598 | 410 | 998 | 45 |
| XL | 595 | 403 | 73 | 73 | 195 | 585 | 570 | 854 | 68 | 613 | 410 | 1013 | 45 |
All measurements in millimetres unless marked (°) for angles.
