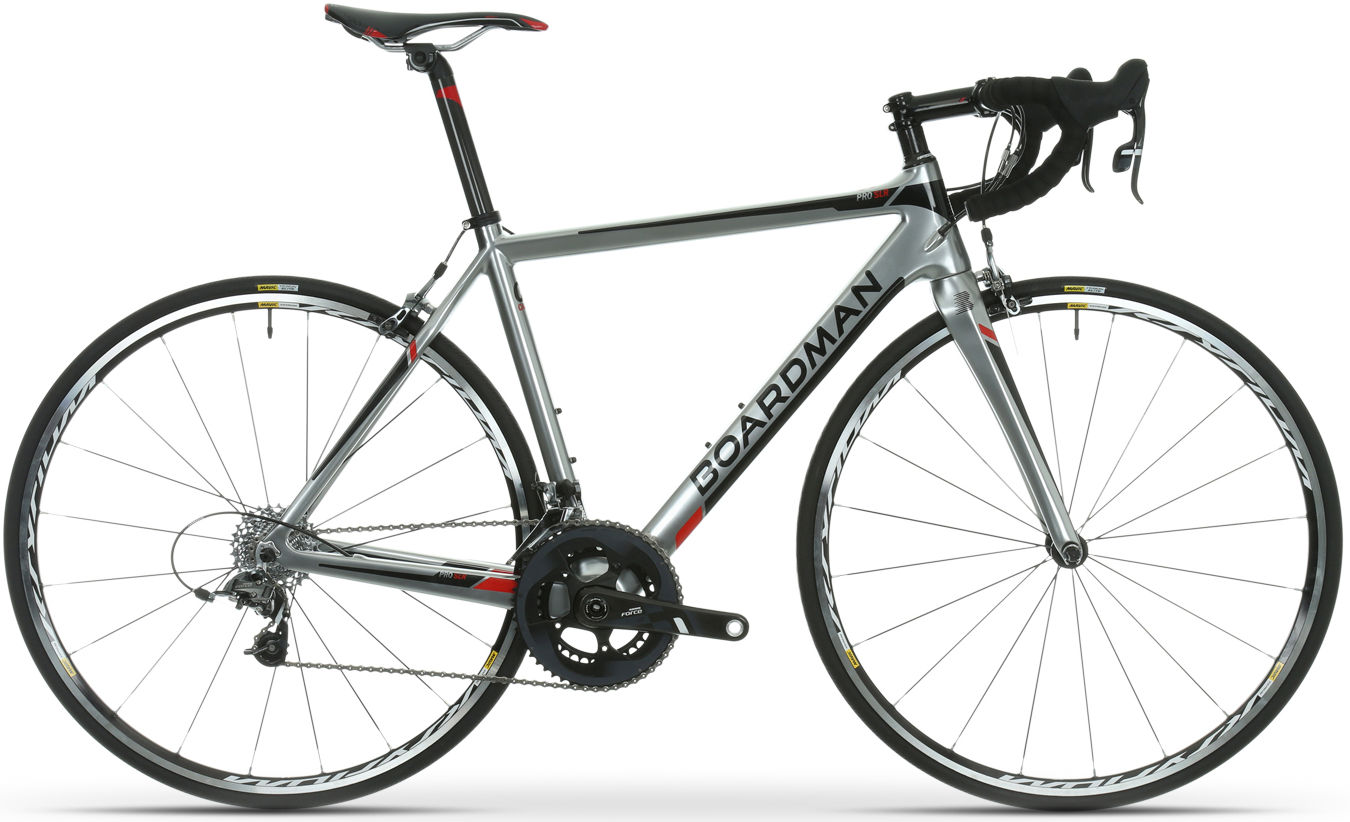

2016 Boardman Performance Pro Carbon SLR geometry
Full frame geometry for the 2016 Boardman Performance Pro Carbon SLR, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 502 | 386 | 74.5 | 72 | 100 | 525 | 470 | 755 | 68 | 405 | 971 | — |
| S | 527 | 389 | 74 | 72.5 | 125 | 540 | 485 | 776 | 68 | 405 | 978 | 48 |
| M | 543 | 394 | 73.5 | 73 | 140 | 555 | 500 | 792 | 68 | 405 | 984 | 45 |
| L | 562 | 398 | 73 | 73 | 160 | 570 | 525 | 816 | 68 | 405 | 993 | 45 |
| XL | 677 | 408 | 73 | 73 | 175 | 585 | 540 | 881 | 68 | 405 | 1008 | 45 |
All measurements in millimetres unless marked (°) for angles.
