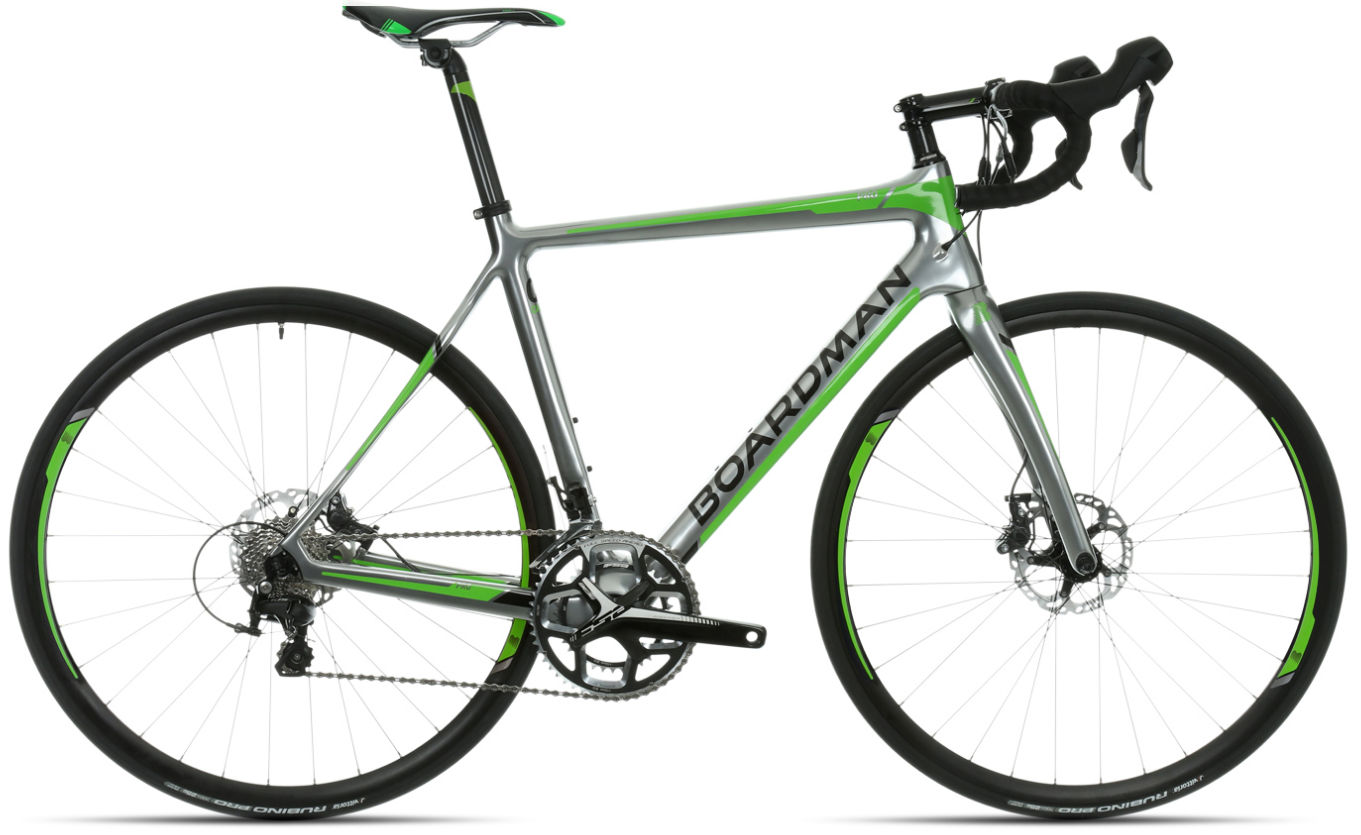

2016 Boardman Performance Pro Carbon Disc geometry
Full frame geometry for the 2016 Boardman Performance Pro Carbon Disc, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 539 | 375 | 73 | 72.5 | 140 | 540 | 515 | 799 | 68 | 415 | 48 |
| M | 560 | 389 | 73 | 73 | 160 | 555 | 530 | 817 | 68 | 415 | 45 |
| L | 582 | 392 | 73 | 73 | 180 | 570 | 555 | 841 | 68 | 415 | 45 |
| XL | 593 | 403 | 73 | 73 | 195 | 585 | 575 | 857 | 68 | 415 | 45 |
All measurements in millimetres unless marked (°) for angles.
