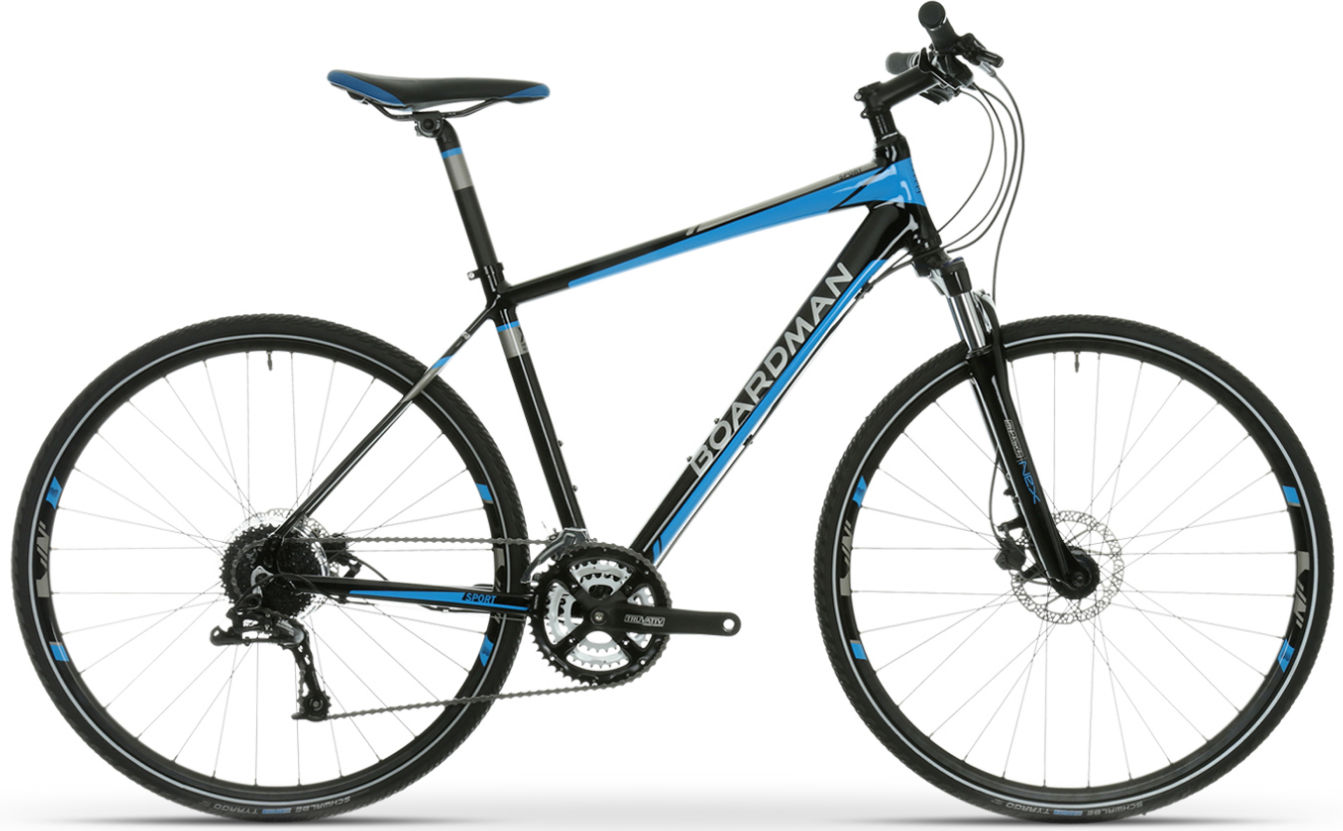

2016 Boardman Performance MX geometry
Full frame geometry for the 2016 Boardman Performance MX, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 604 | 380 | 73 | 71 | 120 | 565 | 450 | 824 | 56 | 450 | 1058 | 40 |
| M | 627 | 398 | 73 | 71 | 145 | 590 | 490 | 857 | 56 | 450 | 1084 | 40 |
| L | 651 | 416 | 73 | 71 | 170 | 615 | 540 | 895 | 56 | 450 | 1110 | 40 |
All measurements in millimetres unless marked (°) for angles.
