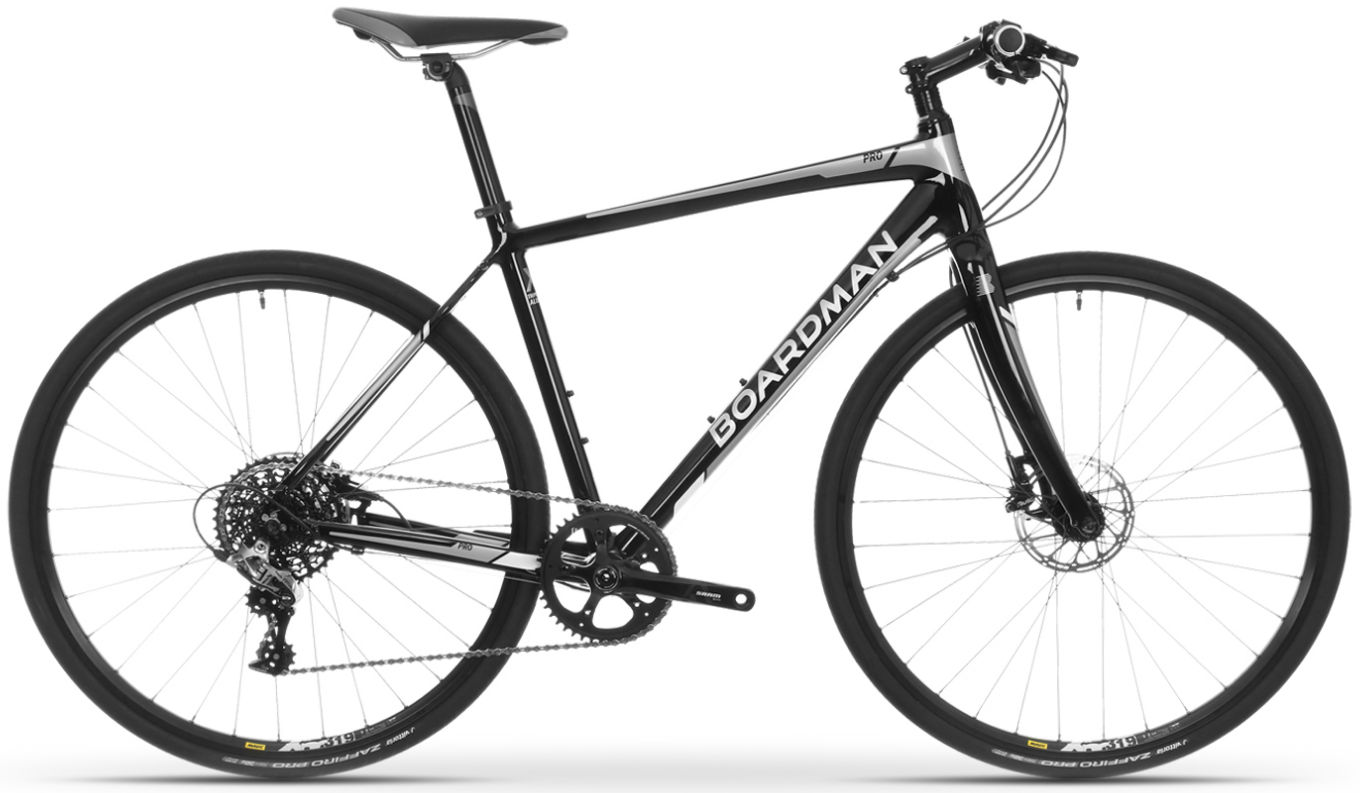

2016 Boardman Performance Hybrid Pro geometry
Full frame geometry for the 2016 Boardman Performance Hybrid Pro, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 551 | 397 | 73 | 73 | 120 | 565 | 450 | 781 | 65 | 425 | 1010 | 43 |
| M | 575 | 414 | 73 | 73 | 145 | 590 | 490 | 814 | 65 | 425 | 1035 | 43 |
| L | 598 | 432 | 73 | 73 | 170 | 615 | 540 | 851 | 65 | 425 | 1060 | 43 |
All measurements in millimetres unless marked (°) for angles.
