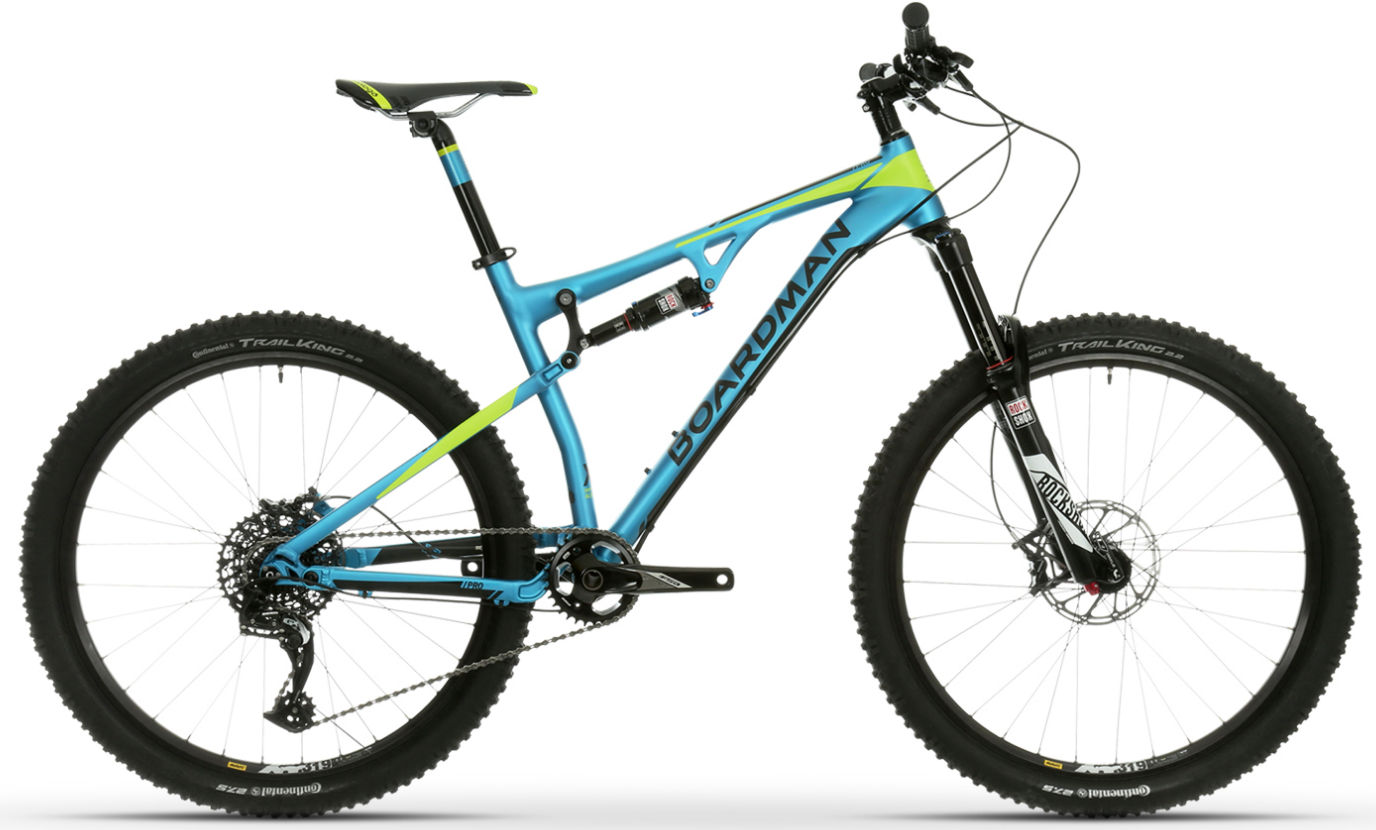

2016 Boardman Performance FS - 27.5 geometry
Full frame geometry for the 2016 Boardman Performance FS - 27.5, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 600 | 412 | 73.5 | 68.5 | 110 | 590 | 410 | 834 | 20 | 430 | 1115 | 42 |
| M | 609 | 424 | 73 | 68.5 | 120 | 610 | 460 | 865 | 20 | 430 | 1131 | 42 |
| L | 619 | 441 | 73 | 68.5 | 130 | 630 | 483 | 882 | 20 | 430 | 1151 | 42 |
| XL | 621 | 455 | 73 | 68 | 135 | 645 | 510 | 897 | 20 | 430 | 1173 | 42 |
All measurements in millimetres unless marked (°) for angles.
