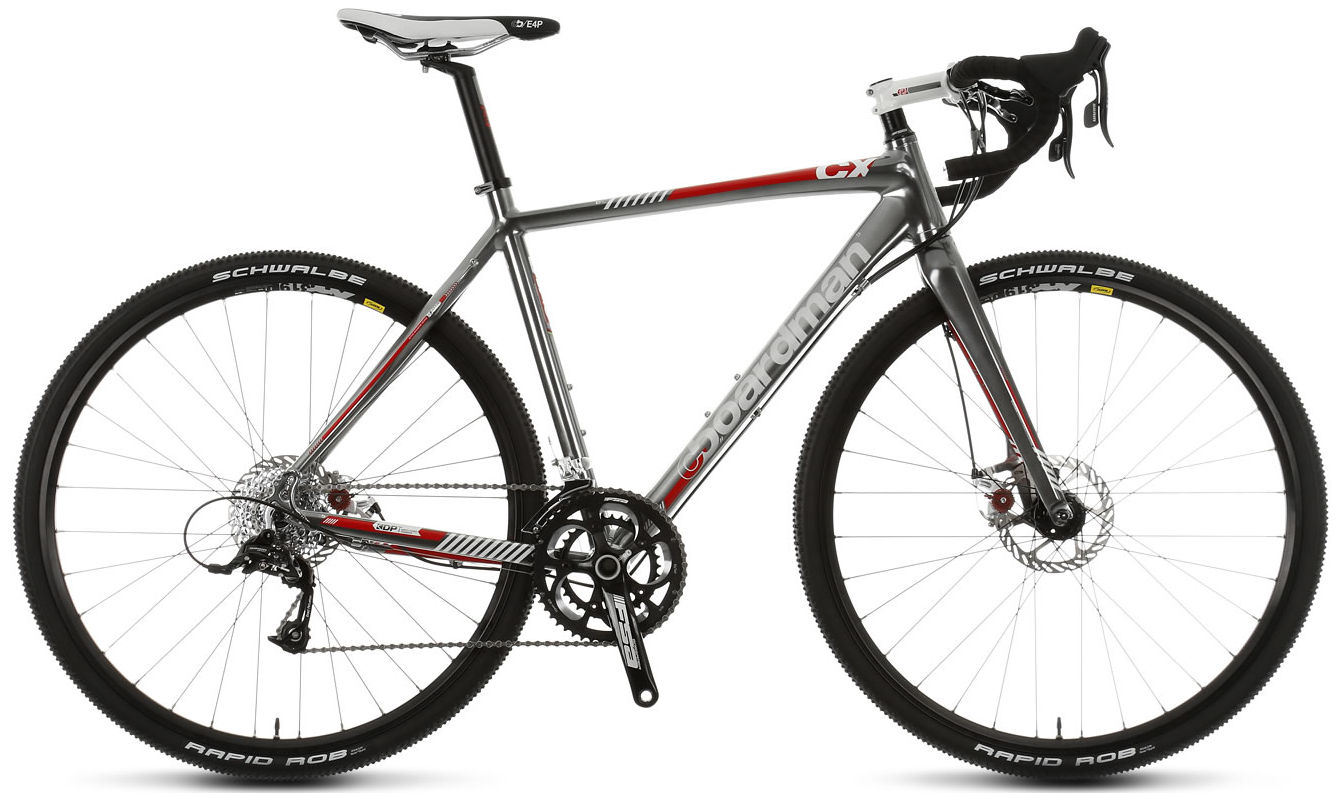

2014 Boardman Performance CX Team MKI geometry
Full frame geometry for the 2014 Boardman Performance CX Team MKI, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 542 | 369 | 74 | 72 | 120 | 525 | 500 | 801 | 65 | 574 | 435 | 1000 | 45 |
| S | 554 | 371 | 73 | 72.5 | 130 | 540 | 500 | 809 | 65 | 574 | 435 | 1000 | 45 |
| M | 565 | 382 | 73 | 73 | 140 | 555 | 530 | 830 | 65 | 584 | 435 | 1010 | 45 |
| L | 584 | 391 | 73 | 73 | 160 | 570 | 555 | 852 | 65 | 599 | 435 | 1025 | 45 |
| XL | 598 | 402 | 73 | 73 | 175 | 585 | 570 | 867 | 65 | 614 | 435 | 1040 | 45 |
All measurements in millimetres unless marked (°) for angles.
