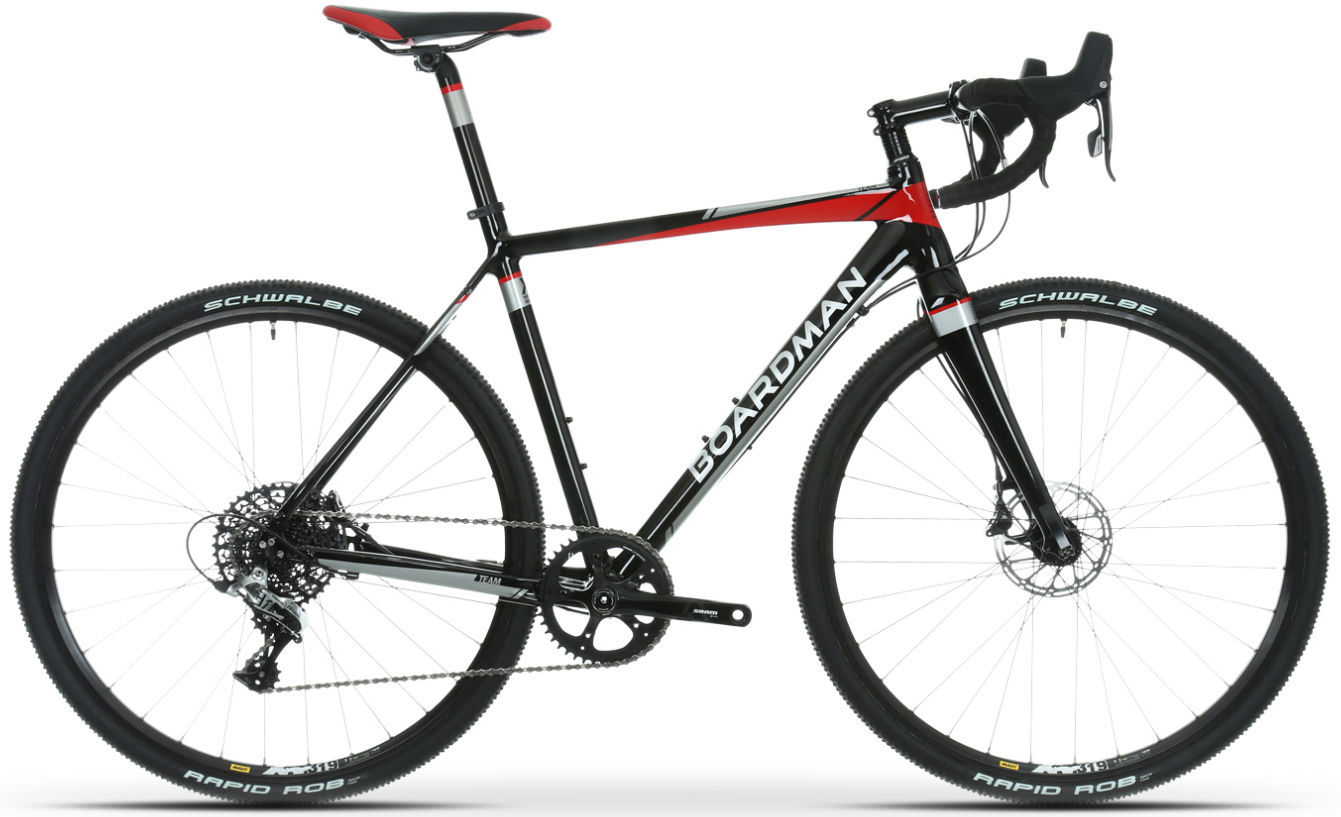

2016 Boardman Performance CX MKII geometry
Full frame geometry for the 2016 Boardman Performance CX MKII, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 550 | 382 | 74 | 71.5 | 125 | 540 | 500 | 808 | 65 | 435 | 1027 | 50 |
| M | 564 | 388 | 73.5 | 71.5 | 140 | 555 | 530 | 832 | 65 | 435 | 1038 | 50 |
| L | 587 | 391 | 73 | 72 | 160 | 570 | 555 | 857 | 65 | 435 | 1038 | 45 |
| XL | 601 | 401 | 73 | 72 | 175 | 585 | 575 | 874 | 65 | 435 | 1053 | 45 |
All measurements in millimetres unless marked (°) for angles.
