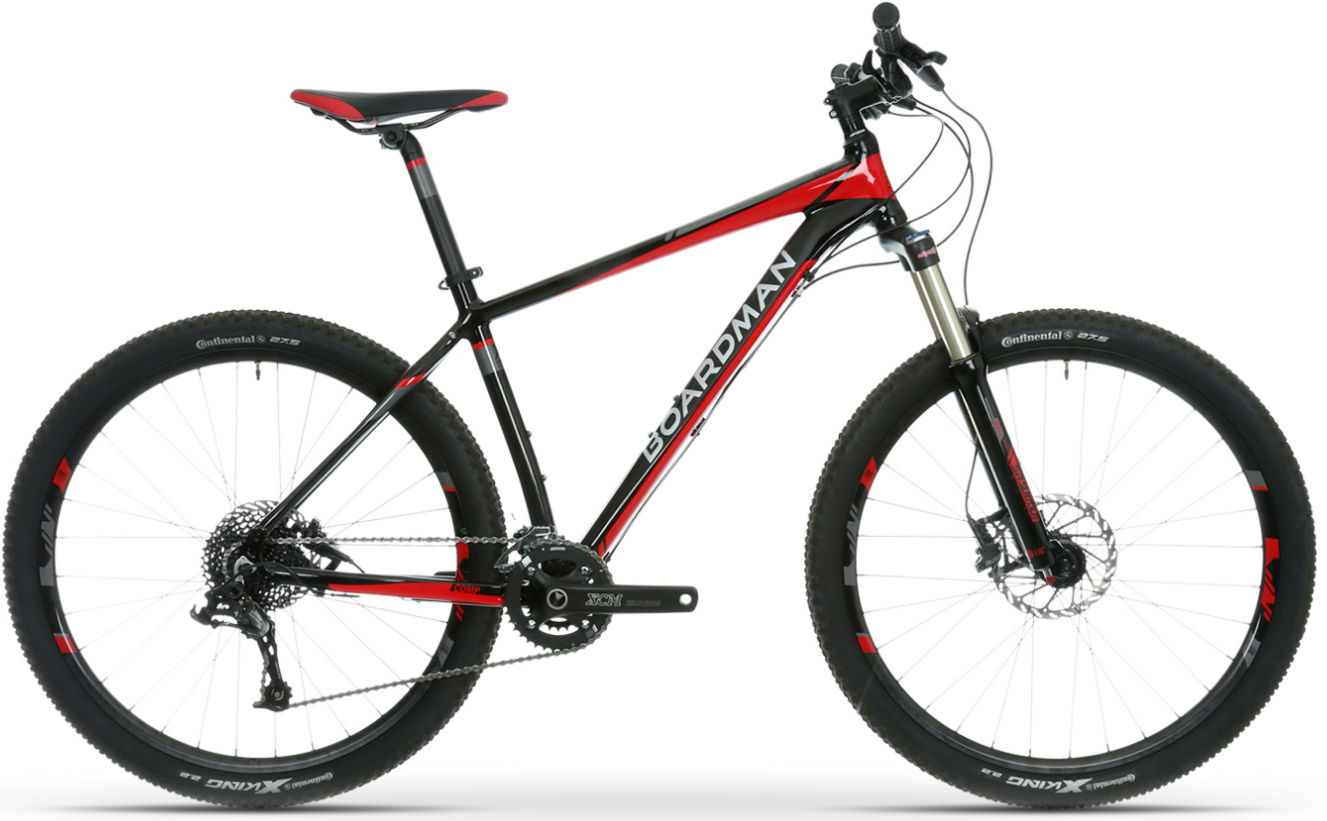

2016 Boardman Performance Comp 27.5 geometry
Full frame geometry for the 2016 Boardman Performance Comp 27.5, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 603 | 406 | 73 | 68.5 | 110 | 590 | 410 | 809 | 47 | 425 | 1097 | 46 |
| M | 613 | 423 | 73 | 68.5 | 120 | 610 | 460 | 840 | 47 | 425 | 1117 | 46 |
| L | 622 | 434 | 73 | 68.5 | 130 | 630 | 485 | 858 | 47 | 425 | 1132 | 46 |
All measurements in millimetres unless marked (°) for angles.
