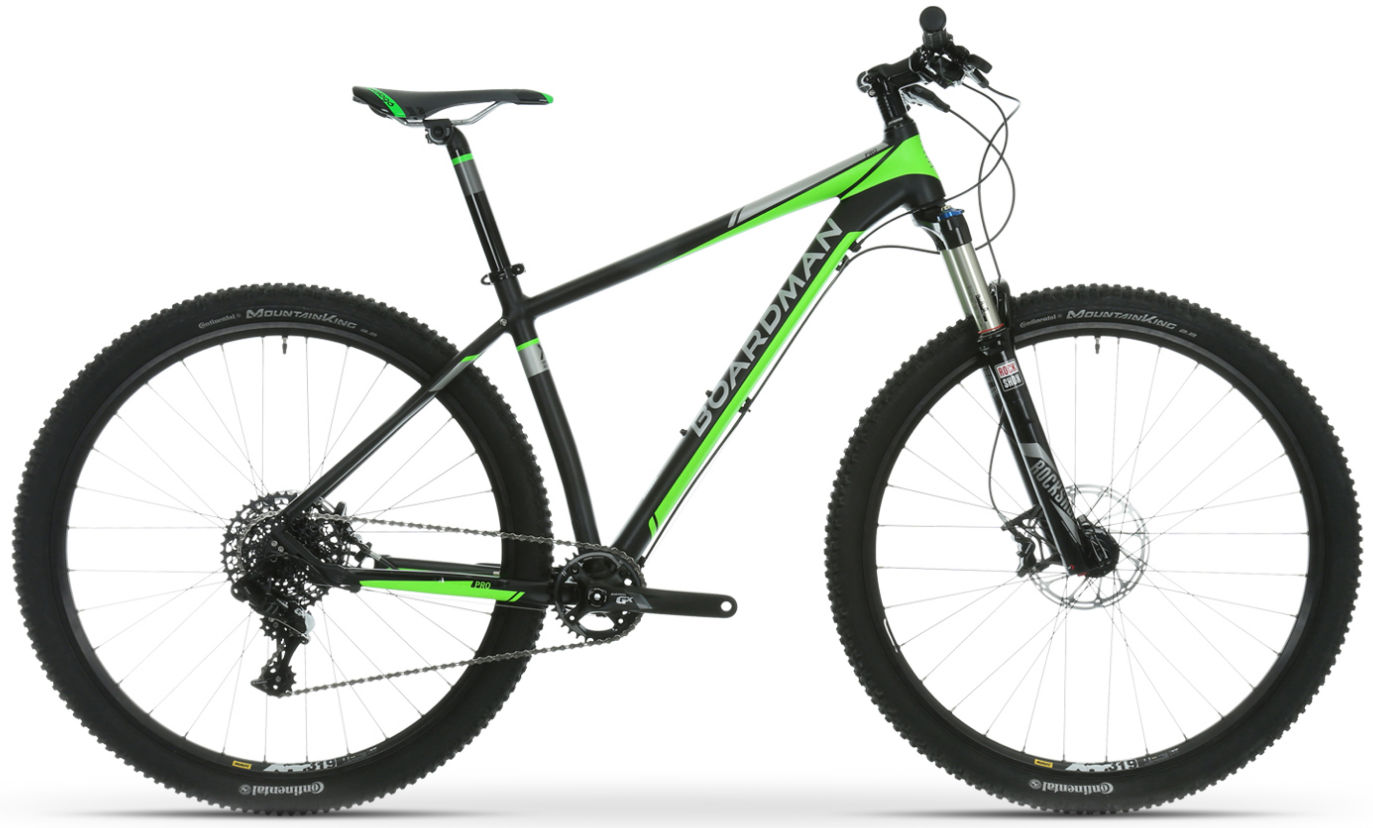

2016 Boardman Performance 29er geometry
Full frame geometry for the 2016 Boardman Performance 29er, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M | 623 | 420 | 73 | 68.5 | 110 | 610 | 460 | 848 | 63 | 435 | 1110 | 51 |
| S | 623 | 400 | 73 | 68.5 | 110 | 590 | 410 | 822 | 63 | 435 | 1090 | 51 |
| L | 628 | 432 | 72.5 | 68.5 | 115 | 630 | 483 | 863 | 63 | 435 | 1124 | 51 |
| XL | 654 | 438 | 72.5 | 69 | 125 | 645 | 510 | 890 | 63 | 435 | 1150 | 51 |
All measurements in millimetres unless marked (°) for angles.
