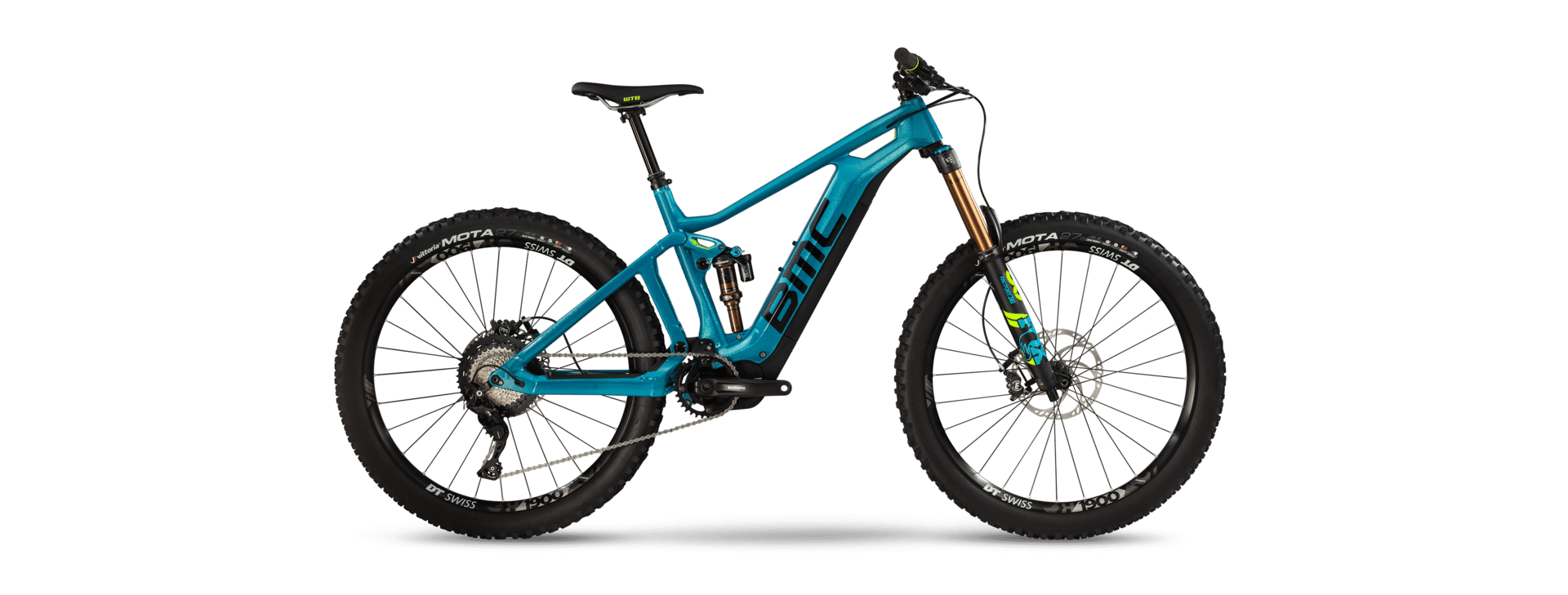

2019 BMC Trailfox AMP SX geometry
Full frame geometry for the 2019 BMC Trailfox AMP SX, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 601 | 396 | 73 | 65 | 91 | 573 | 400 | 751 | 10 | 726 | 447 | 1173 | 51 | 105 |
| M | 612 | 437 | 73 | 65 | 103 | 616 | 440 | 736 | 10 | 771 | 447 | 1218 | 51 | 105 |
| L | 626 | 460 | 73 | 65 | 118 | 645 | 480 | 777 | 10 | 801 | 447 | 1248 | 51 | 105 |
All measurements in millimetres unless marked (°) for angles.
