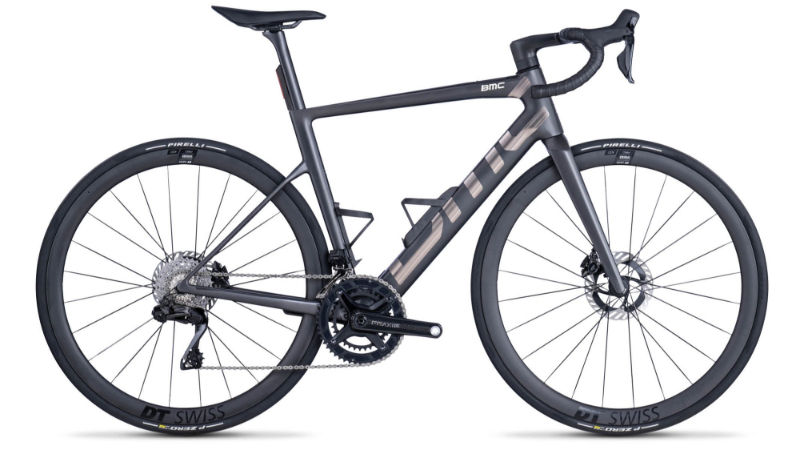

2027 BMC Teammachine 01 AMP geometry
Full frame geometry for the 2027 BMC Teammachine 01 AMP, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 47 | 526 | 367 | 73.5 | 71.5 | 118 | 523 | 422 | 728 | 75 | 573 | 412.5 | 974 | 48 | 64.5 |
| 51 | 550 | 377 | 73.5 | 71.5 | 143 | 540 | 464 | 758 | 75 | 591 | 412.5 | 992 | 48 | 64.5 |
| 54 | 570 | 386 | 73.5 | 72.3 | 160 | 555 | 500 | 788 | 75 | 594 | 412.5 | 995 | 43 | 64.5 |
| 56 | 585 | 392 | 73.5 | 72.3 | 176 | 565 | 510 | 800 | 75 | 605 | 412.5 | 1006 | 43 | 64.5 |
| 58 | 604 | 401 | 73 | 72.3 | 196 | 587 | 530 | 818 | 75 | 620 | 412.5 | 1021 | 43 | 64.5 |
| 61 | 628 | 409 | 73 | 72.3 | 221 | 601 | 555 | 840 | 75 | 635 | 412.5 | 1036 | 43 | 64.5 |
All measurements in millimetres unless marked (°) for angles.
