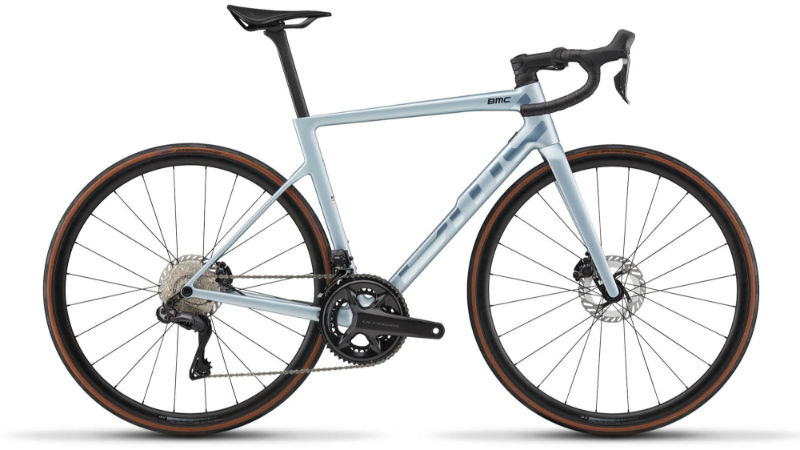

2027 BMC Teammachine SLR geometry
Full frame geometry for the 2027 BMC Teammachine SLR, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 47 | 506 | 367 | 74 | 71.5 | 108 | 515 | 422 | 717 | 69 | 568 | 410 | 968 | 48 | 63 |
| 51 | 530 | 377 | 74 | 71.5 | 133 | 532 | 464 | 752 | 69 | 586 | 410 | 986 | 48 | 63 |
| 54 | 550 | 386 | 73.5 | 72.3 | 149 | 552 | 491 | 779 | 69 | 589 | 410 | 989 | 43 | 63 |
| 56 | 565 | 392 | 73.5 | 72.3 | 165 | 562 | 509 | 797 | 69 | 599 | 410 | 1000 | 43 | 63 |
| 58 | 584 | 401 | 73 | 72.3 | 184 | 582 | 530 | 817 | 69 | 614 | 410 | 1015 | 43 | 63 |
| 61 | 608 | 409 | 73 | 72.3 | 211 | 598 | 555 | 843 | 69 | 630 | 410 | 1030 | 43 | 63 |
All measurements in millimetres unless marked (°) for angles.
