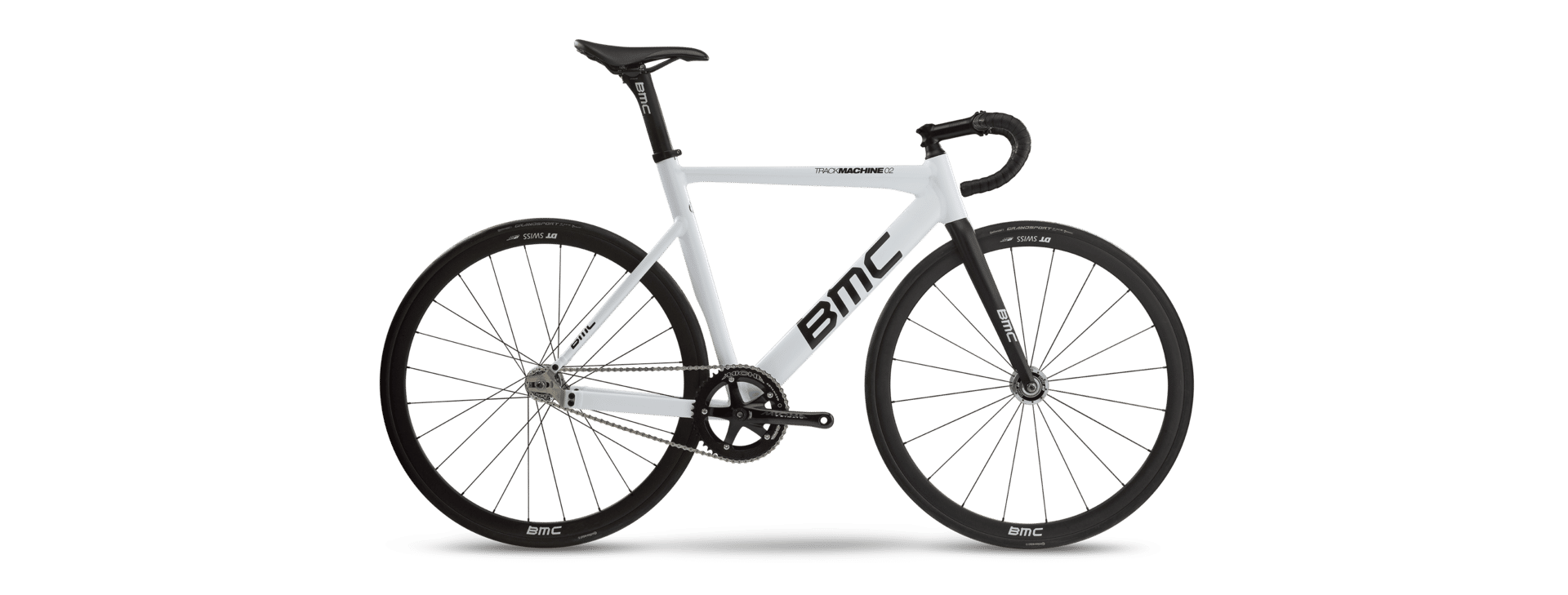

2015 BMC TR02 geometry
Full frame geometry for the 2015 BMC TR02, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 476 | 387 | 73.5 | 73 | 95 | 528 | 490 | 770 | 50 | 564 | 390 | 949 | 43 | 58 |
| S | 490 | 395 | 73.5 | 73 | 110 | 540 | 520 | 792 | 50 | 577 | 390 | 956 | 43 | 58 |
| M | 525 | 402 | 73.5 | 73 | 138 | 558 | 550 | 817 | 58 | 592 | 390 | 975 | 43 | 58 |
| L | 563 | 413 | 73.5 | 73 | 178 | 580 | 585 | 855 | 58 | 616 | 390 | 999 | 43 | 58 |
All measurements in millimetres unless marked (°) for angles.
