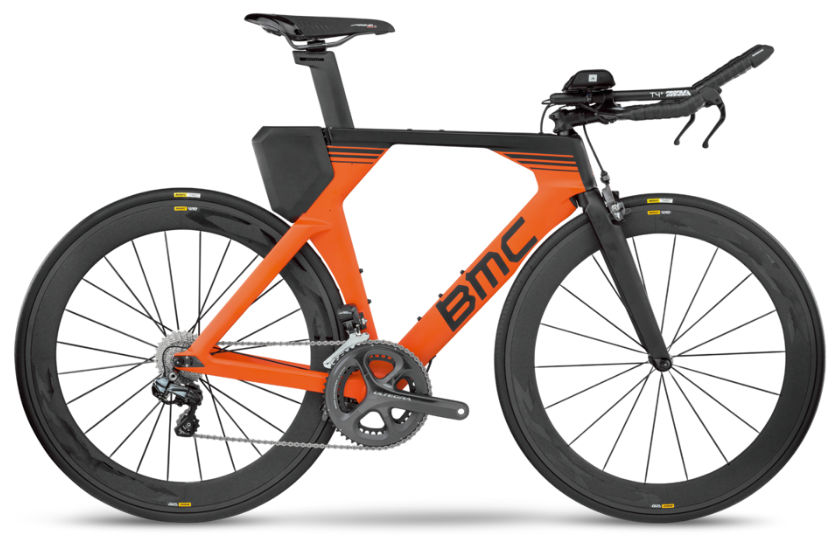

2017 BMC TM02 MKII geometry
Full frame geometry for the 2017 BMC TM02 MKII, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 480 | 384 | 76.5 | 71.5 | 97 | 755 | 58 | 579 | 392 | 964 | 45 | 60 |
| M-L | 514 | 418 | 76.5 | 71.5 | 111 | 797 | 68 | 618 | 396 | 1007 | 45 | 60 |
| M-S | 514 | 377 | 76.5 | 71.5 | 111 | 797 | 68 | 578 | 396 | 966 | 45 | 60 |
| L | 553 | 435 | 76.5 | 71.5 | 153 | 838 | 68 | 648 | 396 | 1038 | 45 | 60 |
All measurements in millimetres unless marked (°) for angles.
