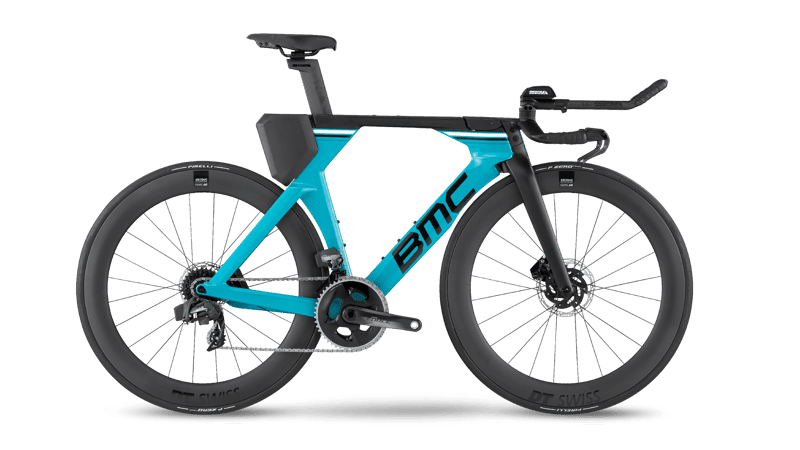

2022 BMC Timemahine geometry
Full frame geometry for the 2022 BMC Timemahine, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Head angle (°) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| S | 480 | 393 | 71.5 | 495 | 58 | 580 | 400 | 972 | 45 | 60 |
| M-L | 515 | 418 | 71.5 | 550 | 68 | 619 | 400 | 1009 | 45 | 60 |
| M-S | 515 | 377 | 71.5 | 550 | 68 | 578 | 400 | 968 | 45 | 60 |
| L | 556 | 442 | 71.5 | 592 | 68 | 649 | 400 | 1039 | 45 | 60 |
All measurements in millimetres unless marked (°) for angles.
