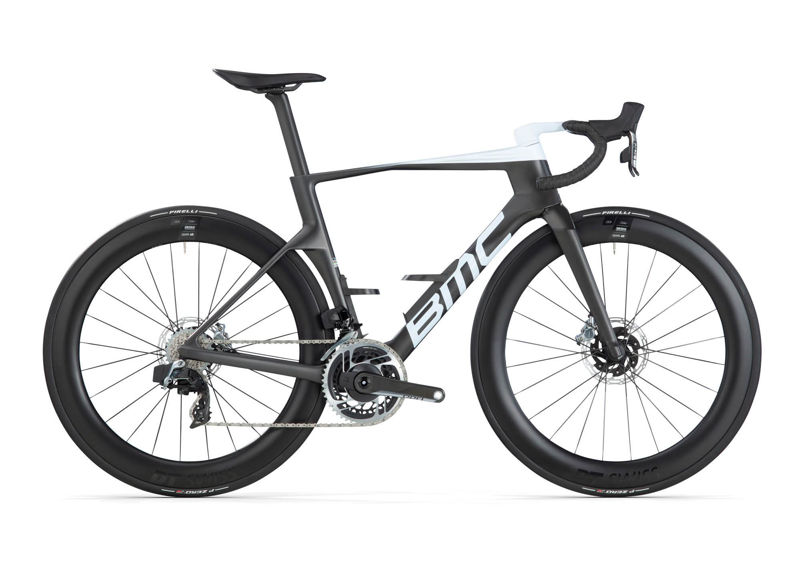

2024 BMC Teammachine R 01 geometry
Full frame geometry for the 2024 BMC Teammachine R 01, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 47 | 504 | 368 | 74 | 71.5 | 108 | 522 | 418 | 721 | 69 | 568 | 410 | 968 | 48 | 63 |
| 51 | 528 | 378 | 74 | 71.5 | 133 | 532 | 463 | 755 | 69 | 586 | 410 | 986 | 48 | 63 |
| 54 | 548 | 387 | 73.5 | 72.3 | 149 | 552 | 499 | 781 | 69 | 589 | 410 | 989 | 43 | 63 |
| 56 | 563 | 393 | 73.5 | 72.3 | 165 | 562 | 519 | 799 | 69 | 599 | 410 | 999 | 43 | 63 |
| 58 | 582 | 402 | 73 | 72.3 | 185 | 582 | 541 | 813 | 69 | 614 | 410 | 1015 | 43 | 63 |
| 61 | 608 | 409 | 73 | 72.3 | 211 | 598 | 570 | 836 | 69 | 630 | 410 | 1030 | 43 | 63 |
All measurements in millimetres unless marked (°) for angles.
