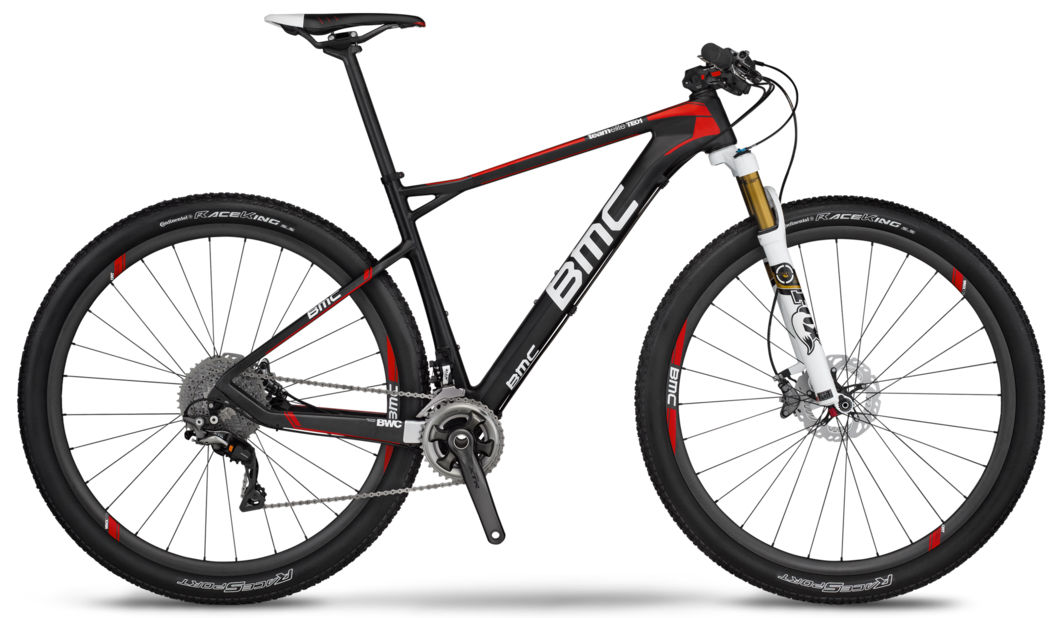

2015 BMC teamelite Carbon MK I geometry
Full frame geometry for the 2015 BMC teamelite Carbon MK I, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 608 | 401 | 73.5 | 70 | 90 | 590 | 445 | 833 | 65 | 654 | 429 | 1075 | 51 | 80 |
| M | 618 | 426 | 73.5 | 70 | 100 | 610 | 485 | 859 | 65 | 679 | 429 | 1100 | 51 | 80 |
| L | 628 | 442 | 73.5 | 70 | 110 | 631 | 535 | 890 | 65 | 705 | 429 | 1126 | 51 | 80 |
All measurements in millimetres unless marked (°) for angles.
