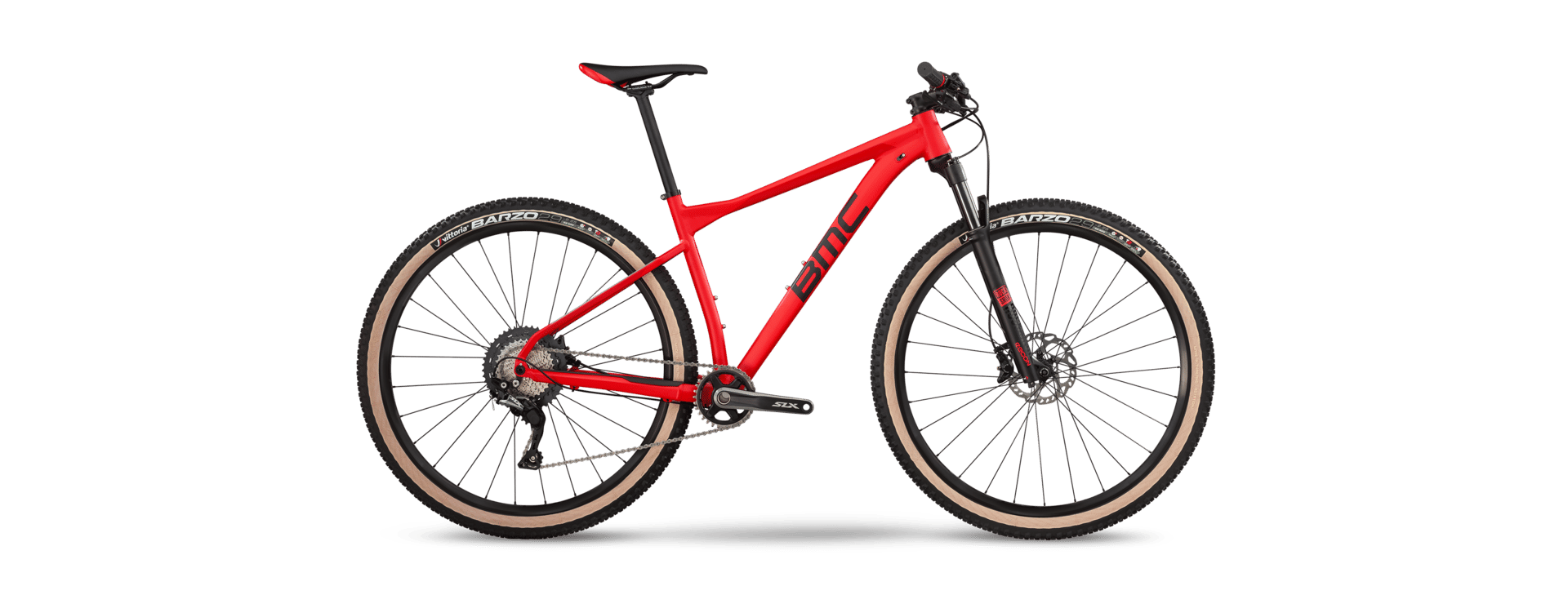

2019 BMC Teamelite Aluminium MK II geometry
Full frame geometry for the 2019 BMC Teamelite Aluminium MK II, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 605 | 405 | 73.5 | 70 | 90 | 580 | 425 | 730 | 60 | 656 | 433 | 1084 | 51 | 80 |
| M | 615 | 426 | 73.5 | 70 | 100 | 608 | 455 | 760 | 60 | 685 | 433 | 1113 | 51 | 80 |
| L | 624 | 442 | 73.5 | 70 | 110 | 627 | 495 | 785 | 60 | 704 | 433 | 1132 | 51 | 80 |
| XL | 633 | 458 | 73.5 | 70 | 120 | 646 | 545 | 825 | 60 | 724 | 433 | 1152 | 51 | 80 |
All measurements in millimetres unless marked (°) for angles.
