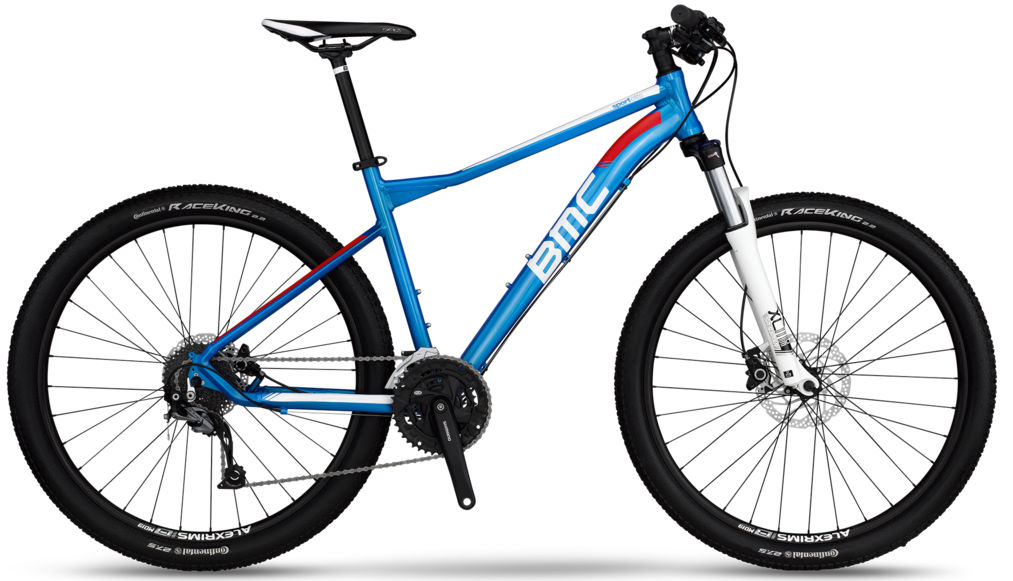

2016 BMC Sportelite SE 27.5 MK I geometry
Full frame geometry for the 2016 BMC Sportelite SE 27.5 MK I, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 585 | 385 | 73.8 | 70 | 100 | 555 | 380 | 675 | 42 | 628 | 438 | 1063 | 42 | 82 |
| S | 594 | 400 | 73.5 | 70 | 110 | 576 | 415 | 726 | 42 | 646 | 438 | 1081 | 42 | 82 |
| M | 604 | 415 | 73 | 70 | 120 | 600 | 460 | 752 | 42 | 665 | 438 | 1100 | 42 | 82 |
| L | 618 | 435 | 73 | 70 | 140 | 624 | 500 | 786 | 42 | 690 | 438 | 1125 | 42 | 82 |
| XL | 632 | 455 | 72.5 | 70 | 150 | 654 | 540 | 818 | 42 | 715 | 438 | 1150 | 42 | 82 |
All measurements in millimetres unless marked (°) for angles.
