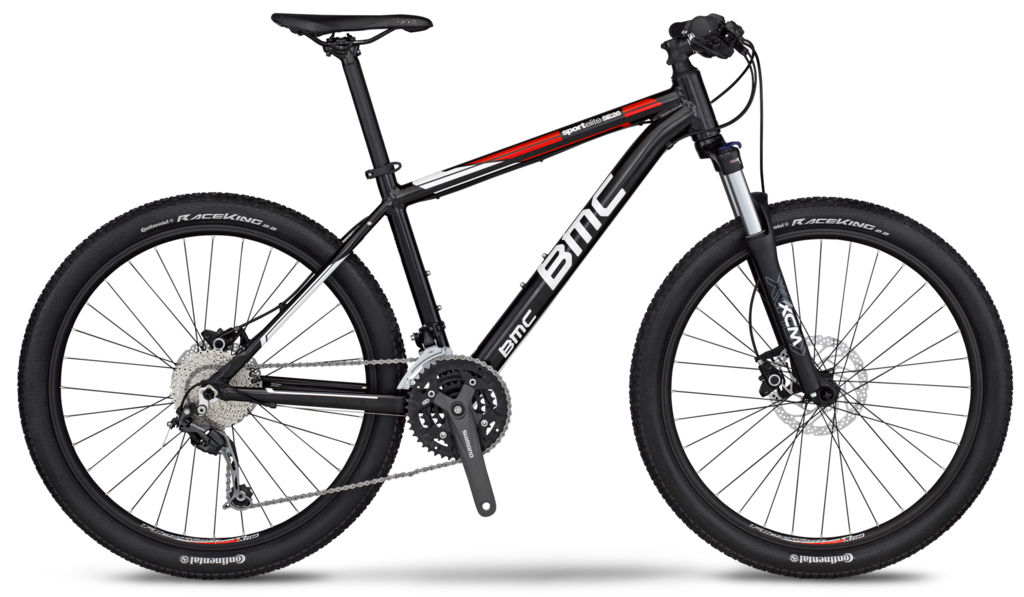

2015 BMC sportelite 26 geometry
Full frame geometry for the 2015 BMC sportelite 26, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 568 | 405 | 73 | 70.5 | 110 | 580 | 431 | 807 | 32 | 672 | 425 | 1095 | 38 | 92 |
| XS | 568 | 385 | 73 | 70.5 | 110 | 560 | 384 | 783 | 32 | 652 | 425 | 1075 | 38 | 92 |
| M | 582 | 416 | 73 | 70.5 | 125 | 595 | 483 | 842 | 32 | 688 | 425 | 1111 | 38 | 92 |
| L | 596 | 427 | 73 | 70.5 | 140 | 610 | 533 | 875 | 32 | 704 | 425 | 1127 | 38 | 92 |
| XL | 620 | 449 | 73 | 70.5 | 165 | 640 | 584 | 913 | 32 | 734 | 425 | 1157 | 38 | 92 |
All measurements in millimetres unless marked (°) for angles.
