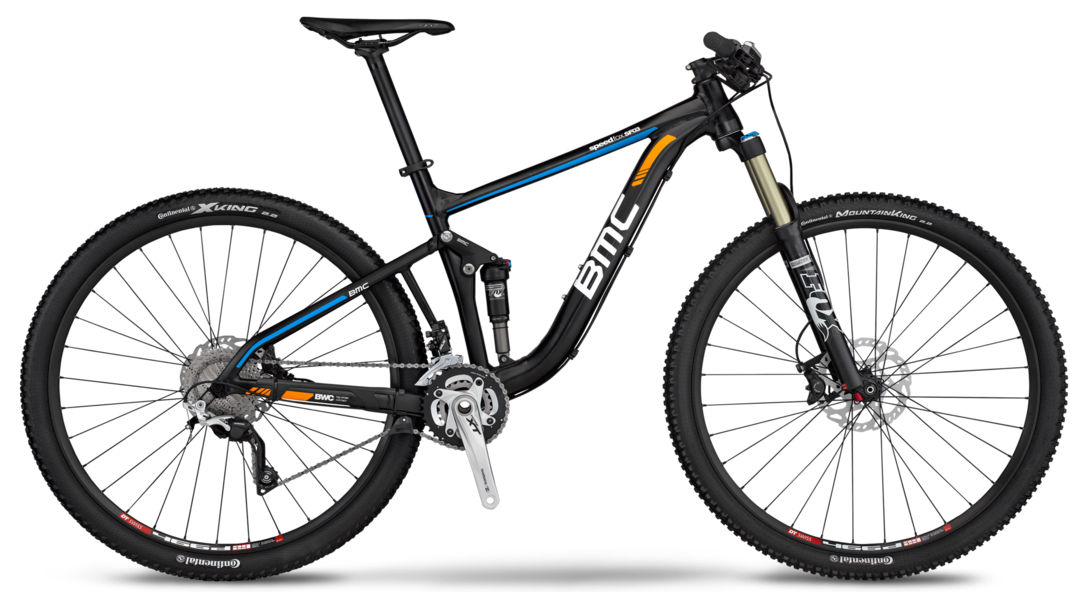

2015 BMC speedfox Aluminium geometry
Full frame geometry for the 2015 BMC speedfox Aluminium, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 598 | 395 | 74 | 68.5 | 90 | 566 | 390 | 812 | 35 | 672 | 435 | 1105 | 51 | 91 |
| S | 602 | 415 | 74 | 68.5 | 95 | 588 | 420 | 830 | 35 | 694 | 435 | 1127 | 51 | 91 |
| M | 607 | 435 | 74 | 68.5 | 100 | 609 | 460 | 853 | 35 | 716 | 435 | 1149 | 51 | 91 |
| L | 612 | 455 | 74 | 68.5 | 105 | 630 | 500 | 876 | 35 | 738 | 435 | 1171 | 51 | 91 |
| XL | 616 | 475 | 74 | 68.5 | 110 | 652 | 530 | 894 | 35 | 760 | 435 | 1192 | 51 | 91 |
All measurements in millimetres unless marked (°) for angles.
