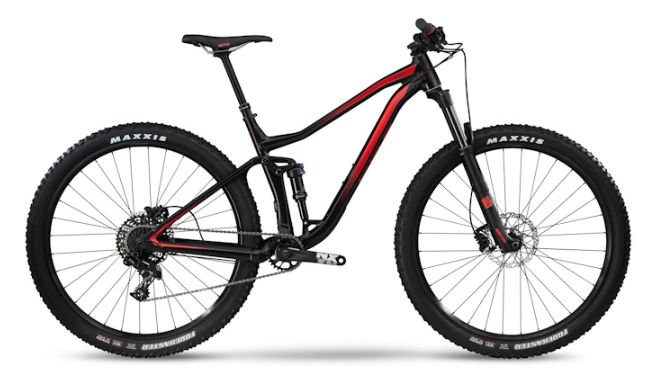

2019 BMC Speedfox 03 geometry
Full frame geometry for the 2019 BMC Speedfox 03, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 600 | 408 | 73.8 | 68.2 | 95 | 587 | 420 | 37 | 677 | 445 | 1123 |
| M | 610 | 430 | 73.8 | 68.2 | 105 | 611 | 440 | 37 | 704 | 445 | 1145 |
| L | 620 | 450 | 73.8 | 68.2 | 115 | 634 | 480 | 37 | 728 | 445 | 1169 |
| XL | 635 | 465 | 73.8 | 68.2 | 135 | 653 | 510 | 37 | 748 | 445 | 1189 |
All measurements in millimetres unless marked (°) for angles.
