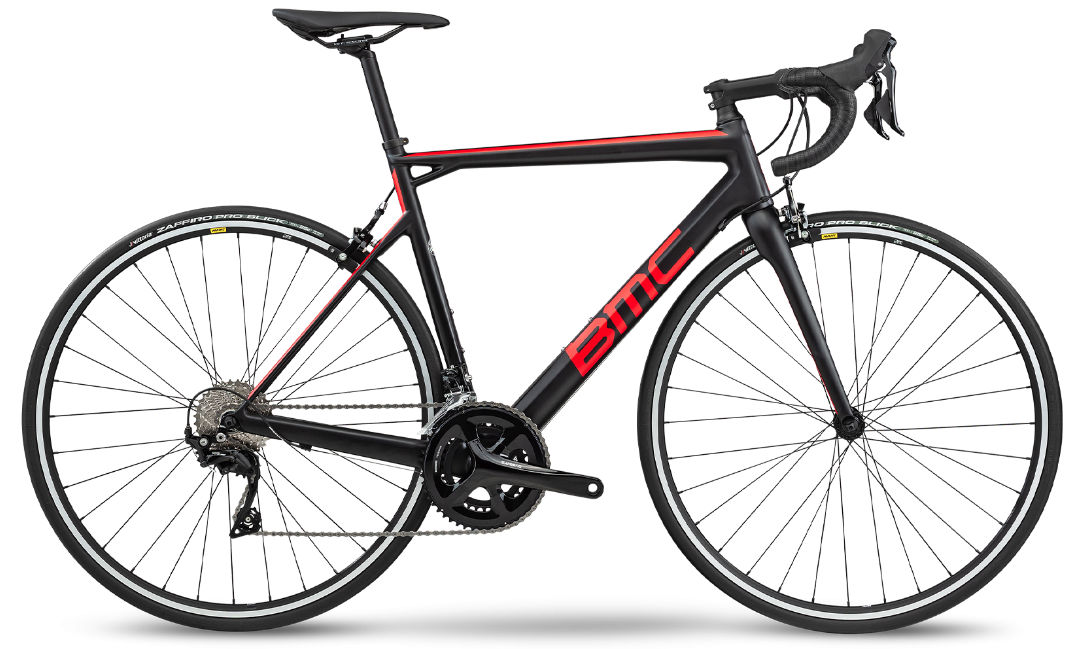

2015 BMC SLR03 geometry
Full frame geometry for the 2015 BMC SLR03, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 47 | 506 | 370 | 73.5 | 70.5 | 108 | 520 | 442 | 741 | 69 | 571 | 402 | 963 | 42 | 76 |
| 51 | 530 | 378 | 73.5 | 72.5 | 128 | 535 | 505 | 786 | 69 | 575 | 402 | 967 | 42 | 66 |
| 54 | 550 | 387 | 73.5 | 72.5 | 148 | 550 | 535 | 811 | 69 | 586 | 402 | 978 | 42 | 63 |
| 57 | 571 | 394 | 73.5 | 72.5 | 170 | 564 | 565 | 837 | 69 | 600 | 402 | 992 | 42 | 63 |
| 60 | 601 | 405 | 73.5 | 72.5 | 201 | 583 | 600 | 871 | 69 | 620 | 402 | 1012 | 42 | 63 |
All measurements in millimetres unless marked (°) for angles.
