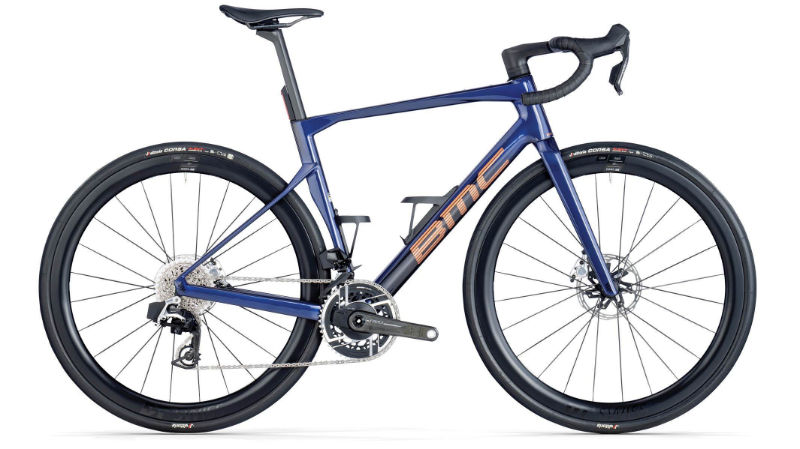

2026 BMC Roadmachine 01 geometry
Full frame geometry for the 2026 BMC Roadmachine 01, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 47 | 525 | 370 | 74.2 | 71.4 | 112 | 520 | 414 | 726 | 75 | 579 | 415 | 982 | 50 | 63 |
| 51 | 550 | 379 | 74.2 | 71.4 | 138 | 537 | 461 | 762 | 75 | 596 | 415 | 1000 | 50 | 63 |
| 54 | 570 | 383 | 74.2 | 72.2 | 154 | 546 | 488 | 786 | 75 | 594 | 415 | 997 | 45 | 63 |
| 56 | 595 | 388 | 74.2 | 72.2 | 181 | 559 | 508 | 807 | 75 | 607 | 415 | 1010 | 45 | 63 |
| 58 | 620 | 393 | 74.2 | 72.2 | 207 | 571 | 529 | 828 | 75 | 620 | 415 | 1023 | 45 | 63 |
| 61 | 645 | 398 | 74.2 | 72.2 | 233 | 581 | 550 | 849 | 75 | 633 | 415 | 1036 | 45 | 63 |
All measurements in millimetres unless marked (°) for angles.
