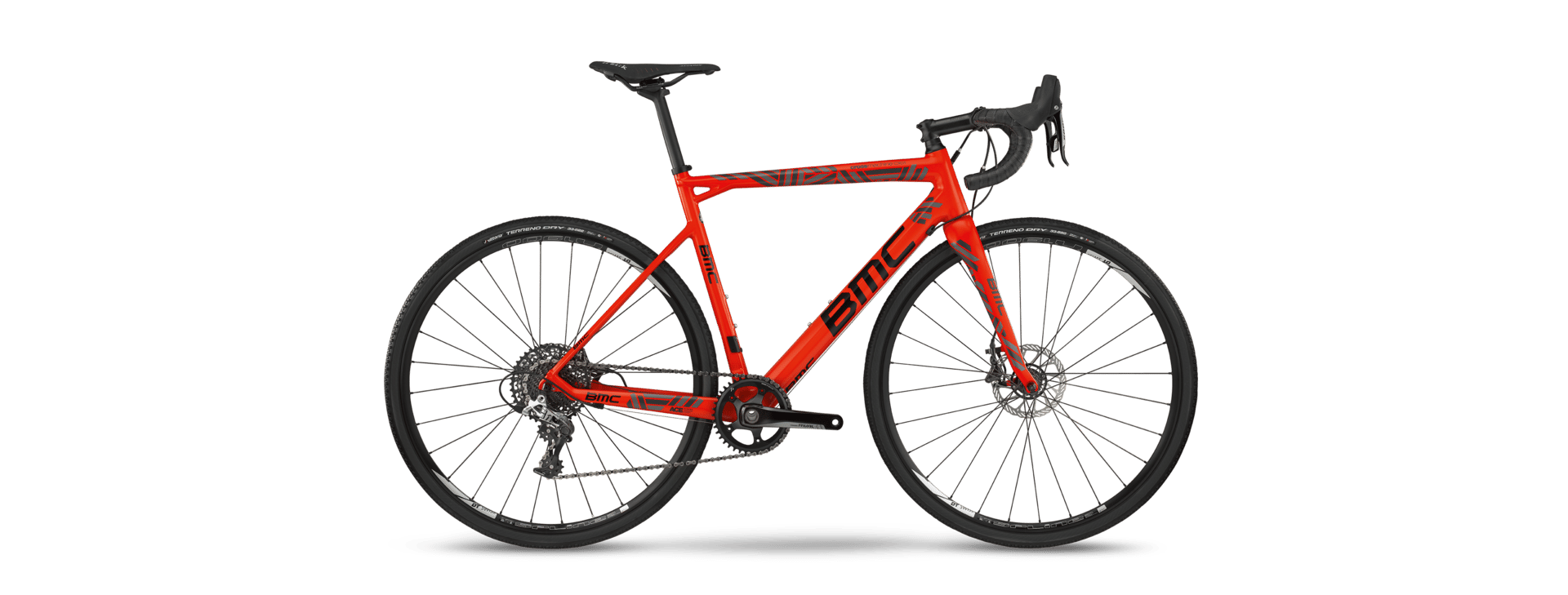

2018 BMC CX01 MK II geometry
Full frame geometry for the 2018 BMC CX01 MK II, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 48 | 506 | 368 | 73.5 | 70.5 | 108 | 518 | 475 | 735 | 125 | 576 | 425 | 994 | 45 | 76 |
| 51 | 530 | 377 | 73.5 | 72 | 128 | 534 | 505 | 763 | 125 | 580 | 425 | 997 | 45 | 66 |
| 54 | 550 | 386 | 73.5 | 72.5 | 148 | 549 | 535 | 796 | 125 | 591 | 425 | 1008 | 45 | 63 |
| 57 | 572 | 394 | 73.5 | 72.5 | 171 | 563 | 565 | 813 | 125 | 605 | 425 | 1022 | 45 | 63 |
| 60 | 601 | 405 | 73.5 | 72.5 | 201 | 583 | 600 | 845 | 125 | 625 | 425 | 1043 | 45 | 63 |
All measurements in millimetres unless marked (°) for angles.
