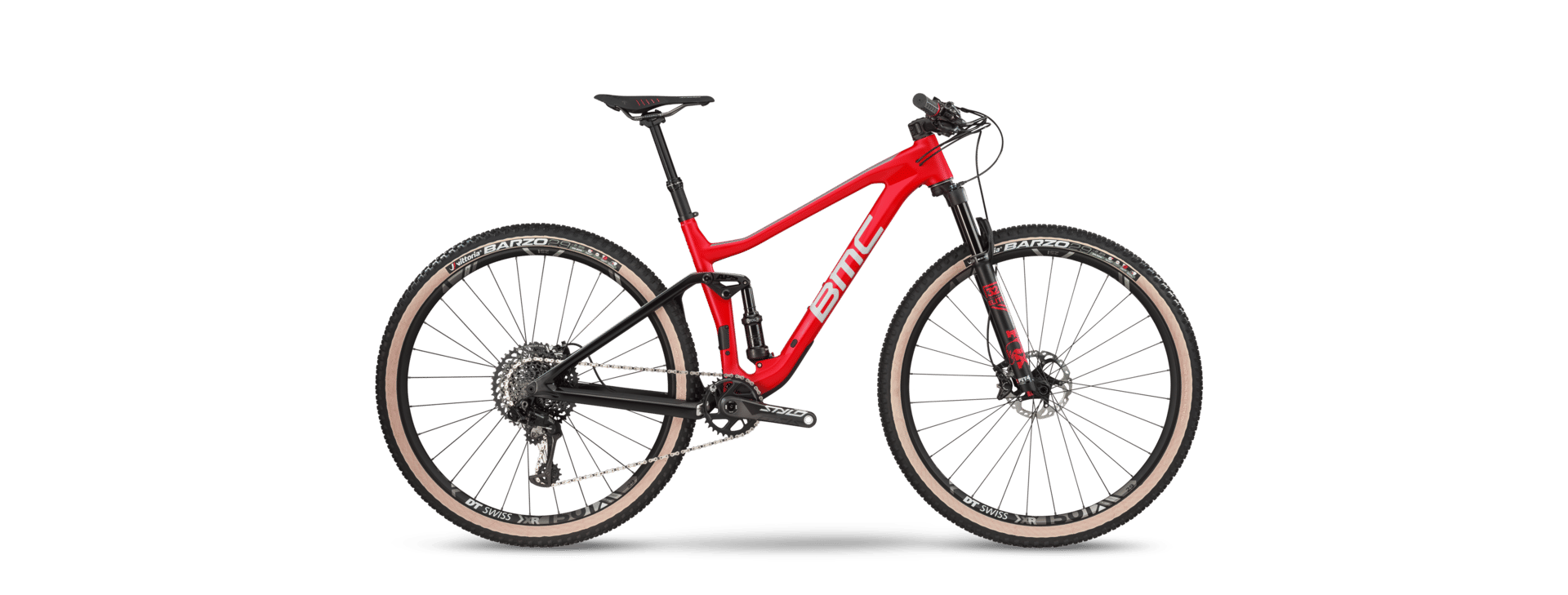

2017 BMC Agonist geometry
Full frame geometry for the 2017 BMC Agonist, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 595 | 412 | 73.8 | 69.5 | 95 | 586 | 420 | 709 | 40 | 674 | 445 | 1119 | 51 | 85 |
| M | 605 | 435 | 73.8 | 69.5 | 105 | 611 | 440 | 730 | 40 | 701 | 445 | 1145 | 51 | 85 |
| L | 615 | 455 | 73.8 | 69.5 | 115 | 634 | 480 | 748 | 40 | 724 | 445 | 1169 | 51 | 85 |
| XL | 630 | 470 | 73.8 | 69.5 | 130 | 653 | 510 | 769 | 40 | 745 | 445 | 1190 | 51 | 85 |
All measurements in millimetres unless marked (°) for angles.
