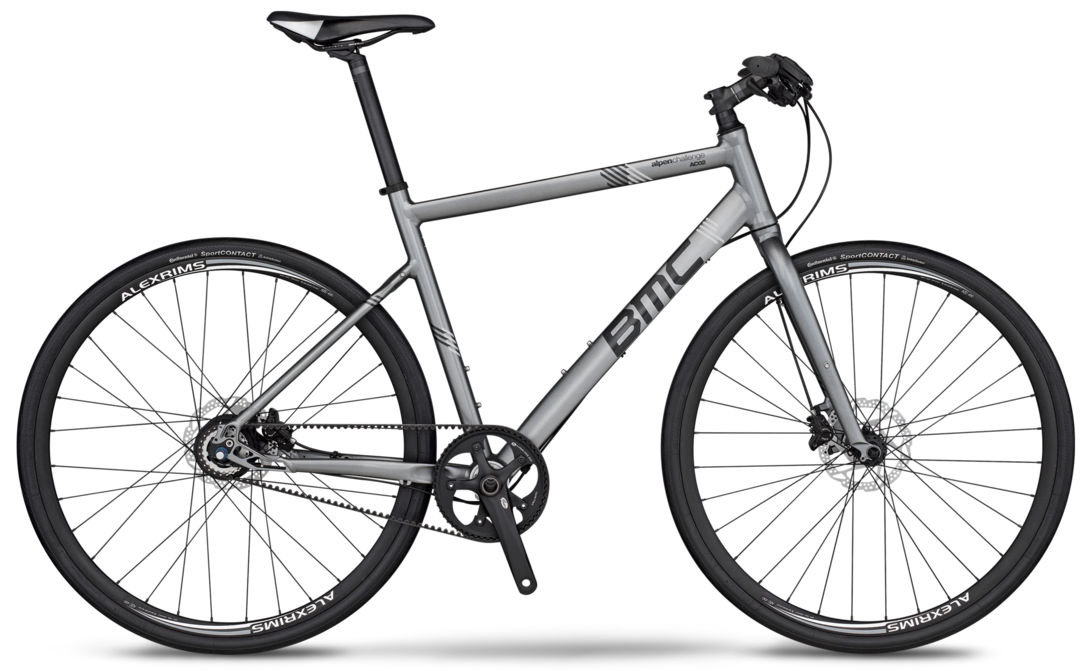

2015 BMC AC02 MK I geometry
Full frame geometry for the 2015 BMC AC02 MK I, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 566 | 393 | 75 | 70.5 | 140 | 545 | 410 | 748 | 70 | 621 | 435 | 1046 | 45 | 77 |
| M | 575 | 406 | 75 | 70.5 | 150 | 560 | 450 | 772 | 70 | 636 | 435 | 1062 | 45 | 77 |
| L | 596 | 410 | 74.5 | 71 | 170 | 575 | 500 | 782 | 70 | 642 | 435 | 1068 | 45 | 74 |
| XL | 627 | 413 | 73 | 71.5 | 200 | 605 | 550 | 843 | 70 | 651 | 435 | 1076 | 45 | 71 |
All measurements in millimetres unless marked (°) for angles.
