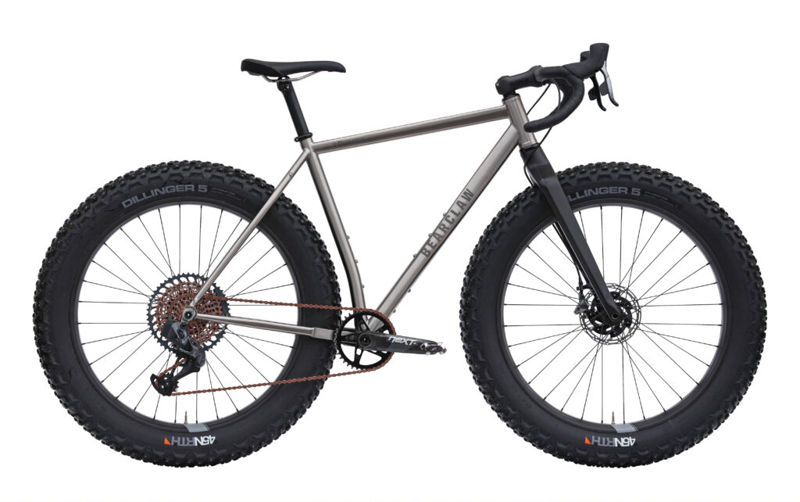

2020 Bearclaw Towmak geometry
Full frame geometry for the 2020 Bearclaw Towmak, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 51 | 591.3 | 380.4 | 74 | 69 | 110 | 510 | 70 | 450 | 1069.3 | 51 |
| 52.5 | 602.9 | 387.9 | 73.5 | 69.5 | 120 | 525 | 70 | 450 | 1079.6 | 51 |
| 54 | 614.5 | 388 | 73.5 | 70 | 130 | 540 | 70 | 450 | 1079.9 | 51 |
| 55.5 | 623.9 | 395.2 | 73.5 | 70 | 140 | 555 | 70 | 450 | 1095.6 | 51 |
| 57 | 633.3 | 402.4 | 73.5 | 70 | 150 | 570 | 70 | 450 | 1106.2 | 51 |
| 58.5 | 642.7 | 409.6 | 73.5 | 70 | 160 | 585 | 70 | 450 | 1116.9 | 51 |
| 60 | 652.1 | 416.8 | 73.5 | 70 | 170 | 600 | 70 | 450 | 1127.5 | 51 |
| 62 | 670.9 | 432 | 73.5 | 70 | 190 | 620 | 70 | 450 | 1149.5 | 51 |
All measurements in millimetres unless marked (°) for angles.
