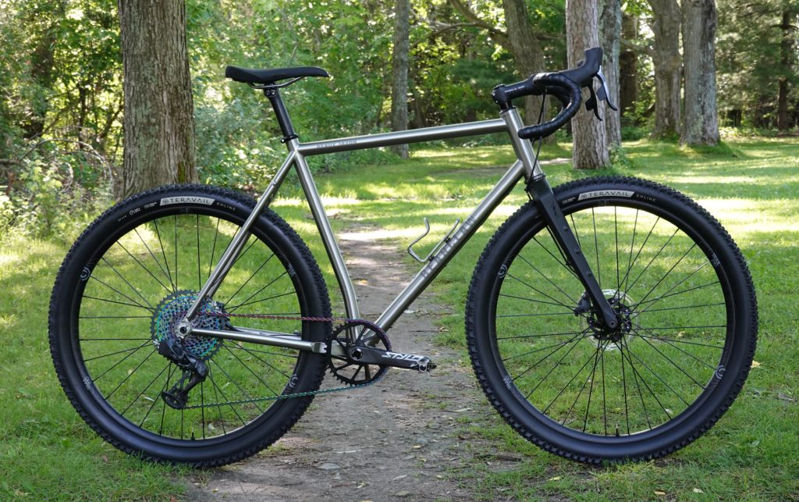

2019 Bearclaw Beaux Jaxon geometry
Full frame geometry for the 2019 Bearclaw Beaux Jaxon, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 51 | 553.8 | 381.2 | 74 | 69.3 | 130 | — | 510 | 70 | 448 | 1056.8 | 47 |
| 52.5 | 565.2 | 387.9 | 74 | 69.8 | 140 | — | 525 | 70 | 448 | 1062.7 | 47 |
| 54 | 574.6 | 389.8 | 73.5 | 69.8 | 150 | — | 540 | 70 | 448 | 1068 | 47 |
| 55.5 | 584 | 394.8 | 73.3 | 69.8 | 160 | — | 555 | 70 | 448 | 1076.5 | 47 |
| 57 | 593.4 | 398.6 | 73 | 69.8 | 170 | — | 570 | 70 | 448 | 1083.7 | 47 |
| 58.5 | 602.8 | 403.4 | 72.8 | 69.8 | 180 | — | 585 | 70 | 448 | 1092 | 47 |
| 60 | 612.2 | 407 | 72.5 | 69.8 | 190 | — | 600 | 70 | 448 | 1099 | 47 |
| 62 | 640.3 | 423.6 | 72.3 | 69.8 | 210 | 628 | 620 | 70 | 448 | 1126.1 | 47 |
All measurements in millimetres unless marked (°) for angles.
