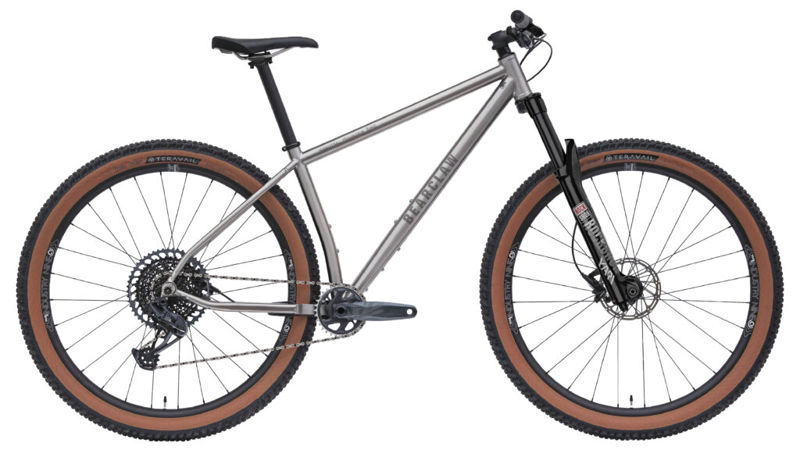

2021 Bearclaw Hardtail Mountain Bike geometry
Full frame geometry for the 2021 Bearclaw Hardtail Mountain Bike, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| S | 614.6 | 402.7 | 73 | 68 | 100 | 380 | 57 | 685.3 | 1109.2 | 51 |
| M | 623.9 | 429.8 | 73 | 68 | 110 | 430 | 57 | 716.2 | 1140.1 | 51 |
| L | 633.1 | 452 | 73 | 68 | 120 | 475 | 57 | 742 | 1166 | 51 |
| XL | 642.4 | 479.2 | 73 | 68 | 130 | 515 | 57 | 772.8 | 1196.9 | 51 |
All measurements in millimetres unless marked (°) for angles.
