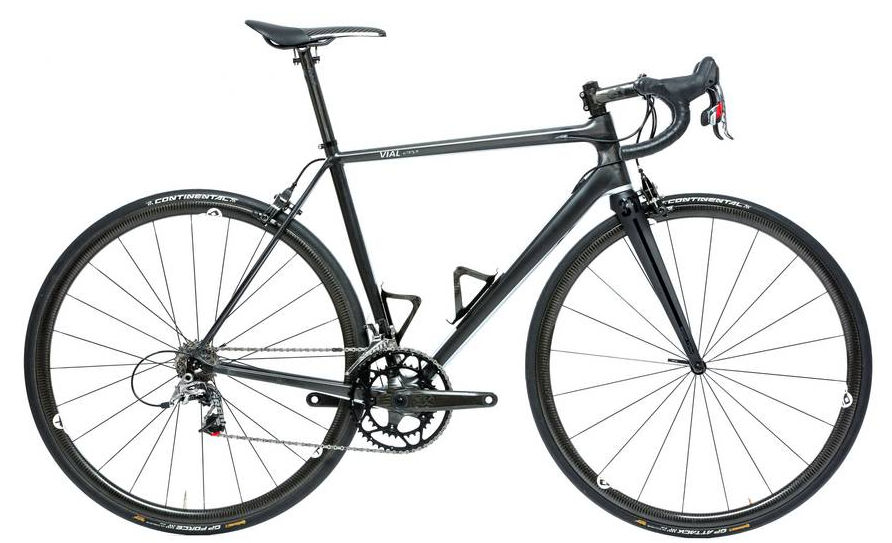

2014 AX-Lightness Vial Evo geometry
Full frame geometry for the 2014 AX-Lightness Vial Evo, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 534 | 372 | 74.5 | 72.5 | 131 | 520 | 490 | 72 | 568 | 402 | 959 | 46 | 57 |
| M | 554 | 383 | 74 | 73 | 152 | 542 | 512 | 70 | 582 | 403 | 974 | 46 | 54 |
| L | 578 | 394 | 73.5 | 73.5 | 175 | 565 | 535 | 70 | 595 | 403 | 987 | 46 | 51 |
| XL | 598 | 405 | 73 | 73.5 | 198 | 588 | 558 | 68 | 613 | 405 | 1008 | 46 | 51 |
All measurements in millimetres unless marked (°) for angles.
