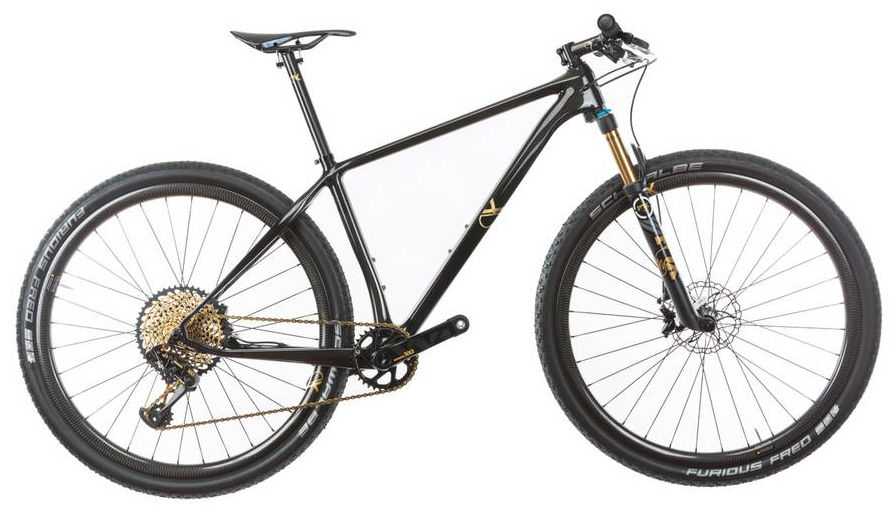

2018 AX-Lightness Vial Evo Race geometry
Full frame geometry for the 2018 AX-Lightness Vial Evo Race, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| S/50 | 529 | 366 | 72.6 | 72.4 | 125 | 531 | 500 | 66 | 403 | 955 |
| M/53 | 548 | 370 | 72.6 | 72.6 | 145 | 541 | 530 | 65 | 403 | 963 |
| L/56 | 578 | 380 | 72.6 | 73 | 175 | 561 | 560 | 65 | 403 | 978 |
All measurements in millimetres unless marked (°) for angles.
